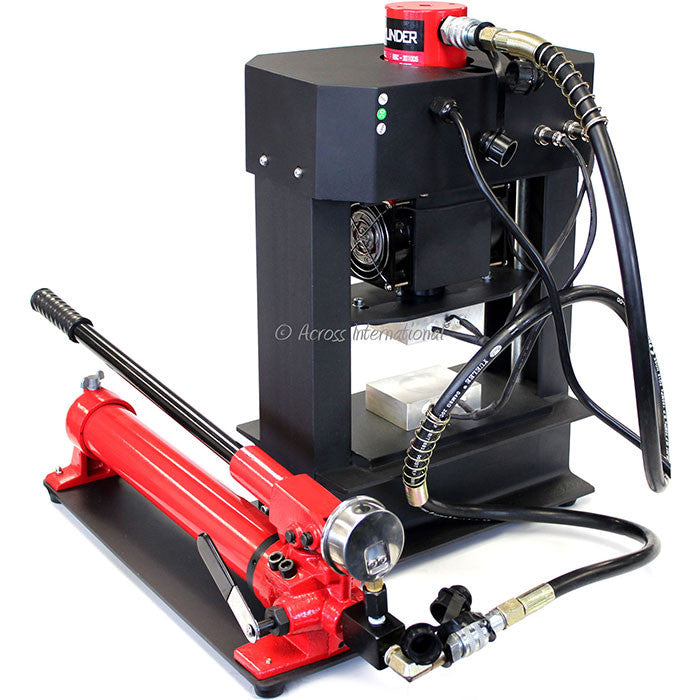

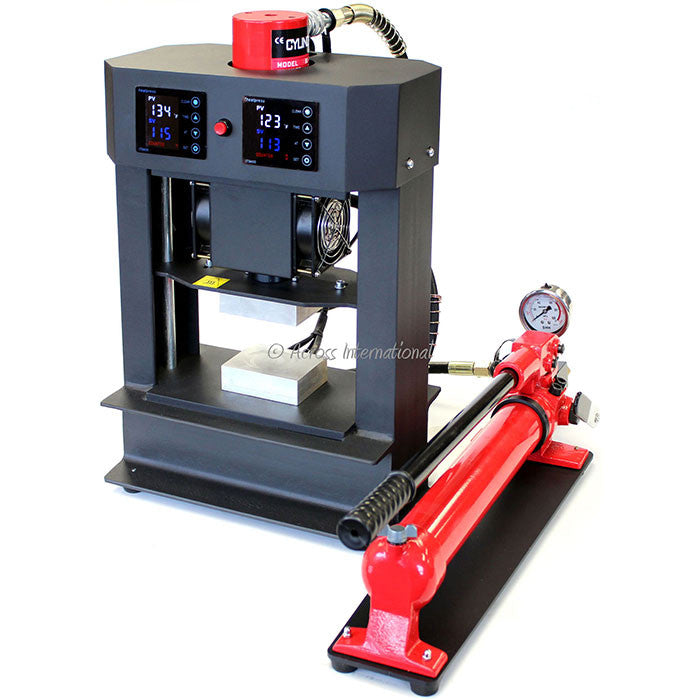

Ai SwingPress20 4 x 3″ heavy duty hydraulic heated press features dual built-in digital thermometers and heaters, allowing you to precisely control the temperature of your transfer. The digital timer will automatically begin a countdown as soon as the clamp is pressed shut, and provides an audible alarm once the predetermined amount of time has elapsed.

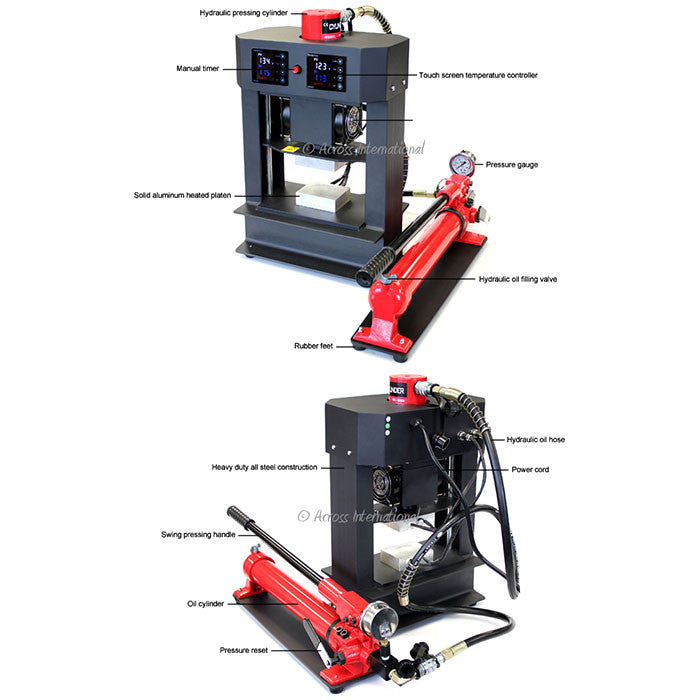

Features

  • Solid aluminum heating platens for easy maintenance and even heating
  • Oil-filled pressure gauge gives you accurate pressure reading.
  • Digital timer and alarm
  • Dual heating platens for increased temperature stability
  • Dual LCD temperature controllers display in Fahrenheit or Celsius
  • Adjustable pressure with pressure release knob
  • Excellent for creating solventless botanical extractions

Tech Specs

Brand Across International
SKU SWINGPRESS20-0403
Weight (lb.) 90
Prop 65 No
Length (in.) 25
Width (in.) 25
Height (in.) 20
Warranty 90 Days
UL Listed No
Rosin Press Type Manual, Hydraulic
Plate Size 4" x 3"
Plate Material Type Solid aluminum
Temperature Range Ambient to 150 C
Temperature Control PID controlled digital controller with LCD panel
Max. Pressure 20 metric tons, 44,000 lbs, or 3,667 psi
Pressure Control Adjustable pressure with pressure release knob
Press Time Range 1 to 999 seconds
Adjustable Tilt Position No
Needs Air Compressor Not Required
Amps 7.3A
Voltage 220 Volt
Exact Watts 800 Watts
Power Cord(s) Included 240 Volt
Power Cord Length 8 ft.
