The SolarECLIPSE SE500+UVB is one of Amare's latest LED panels, featuring enhanced White-Light technology, and six powerful High-Intensity COB light-emitters housed in a patented reflector array with removable secondary optics. The Amare SolarECLIPSE SE500 LED grow light contains CREE CXB3070 or Citizen CLU-08 chips and CREE XP-C2/XPE2 supplemental diodes.
Amare featured the first and only hybrid COB/monochrome enhanced white spectrum. Using 5 watt diodes, Amare fills in and boosts the superior spectrum more than typical blurple (red/blue based) spectrum with an exceptional CRI of 94, the highest for any commercial lighting, even surpassing the excellent CMH/LEC.
...What this means is that Amare covers the entire 380-740 PAR spectrum, including UV/IR with a 50%+ spectrum efficiency vs. ~20% for the typical blurple spectrum.
The SE500 also offers dual operating modes for Grow and Bloom. A UVB bulb extends down the center of the light and is used to increase resin production in medical plants.
Perfect for vegging a 4.5' x 4.5' or flowering a 4' x 4' area, the SolarECLIPSE SE500 will surpass the light saturation point of medical plants (1500umol/sec/m2 ) and natural noon sunlight (2000umol/sec/m2).
SolarECLIPSE Spectral Analysis
SolarECLIPSE SE500+UVB LEDs
Specs
Model/SKU: SolarECLIPSE SE500/se500uvb
Power output: 500 watts
HID equivalent: 800 watts
PAR efficacy: 1.96J @ 1005umol,
Lumens: 101,764 lm
LEDs:
- 6 x CREE CXB3070 (or Citizen CLU-08) Chip On Board (COB) LEDs
- 60 x 5 watt supplemental Top-Bin CREE XP-G2/XP-E2 LEDs (10 per module)
Optics: Patented reflector array with removable lenses in COBs
Spectrum:
- Enhanced white light spectrum peaking @660nm (~3x more than HPS/COB 3000-3500k COB only spectrum) with 6500K white, blue, IR (infrared) and UV-A/B.
- Separate veg/flower spectrum
CRI: 94
PAR:
- No lenses installed: 1207umol @ 24", 770umol @ 36", 546umol @ 48"
- Lenses installed: 2118umol @ 24", 1523umol @ 36", 974umol @ 48"
Lens angle: 90 degrees
Coverage area:
- Veg: 4.5' x 4.5' @ 36" above canopy
- Flower: 4' x 4' @ 24" above canopy

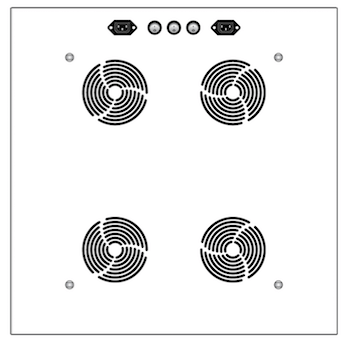

Thermal management: 4 x premium high-CFM ball-bearing fans, Proprietary copper-core heat-sinks
Daisy chain: No

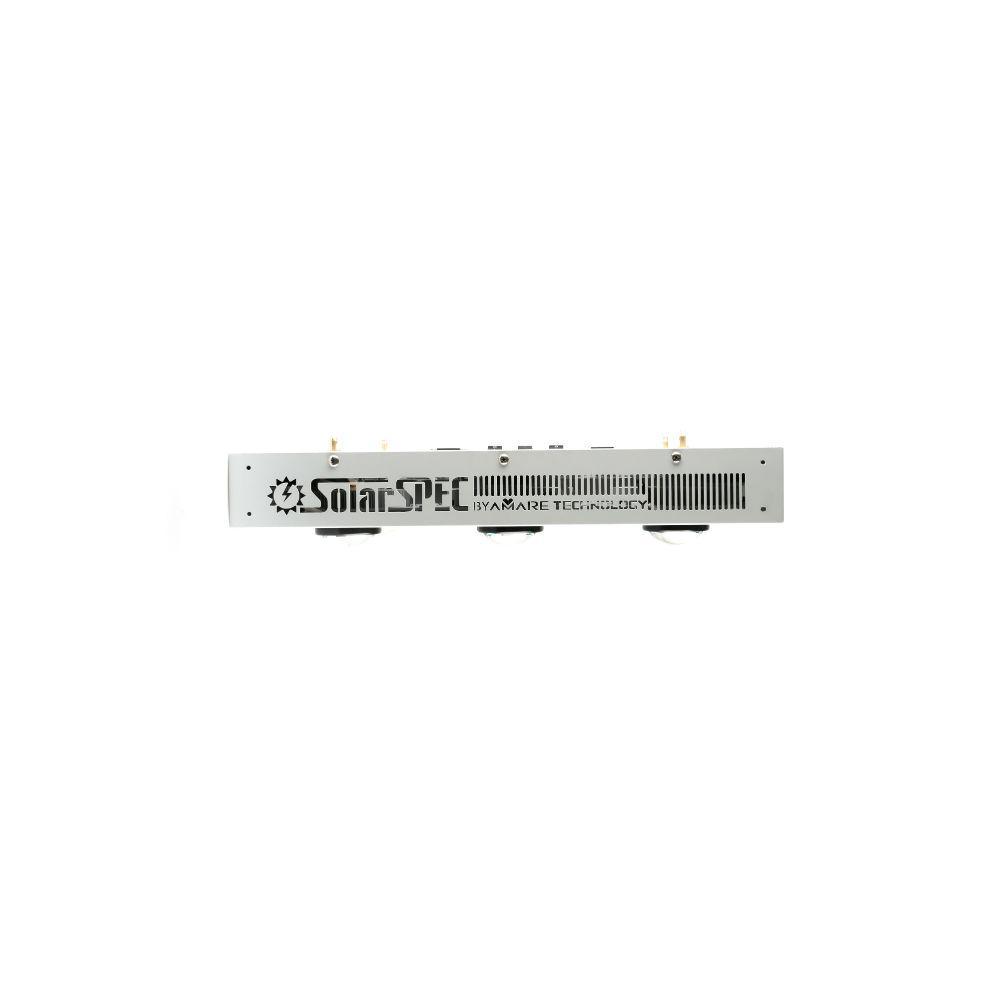

Dimensions: 21.65”x 21.65”x 3.15”
Operating temperature: Avoid extreme ambient heat
Operating/input voltage: 85v-265v AC; 4.45A @ 110v, 2.23A @ 220v; 50Hz-60Hz
Output voltage: UL standard output voltage - less than 76v DC
Product weight: 33.0 lbs
Recommended height above canopy: 20"-32"; Amare does not recommend to place the COB panel less than 28" above the canopy with lenses installed. The special lenses are designed for high-bay applications that need a minimum of ~32" to maximize the coverage and intensity within the recommended footprint
Additional details: Aluminum housing with brilliant gloss-white powder coat
Product includes: Fixture and cord; Heavy-duty ratchet hangers and adjustable H-brackets to attach the panels together
Recommended for: Grow tents; Full-cycle growing from seedling to flower; Soil, hydroponic, aeroponic, or aquaponic systems
Manufacturer's Warranty: 5 years
