Growers! Maximize your yields & profits with ChilLED LED Grow Lights. Switch from HPS to ChilLED and increase your yields & profits 30 - 70+% without adding any additional heat, energy costs or cooling requirements.

Results- Market-leading efficiency combined with our tunable Yield Max spectrum equals unmatched performance.

Quality- Highest build & component quality - never sacrificed for profits. ChilLED grow lights are built to last.

Versatility- Retrofit into your environment with ease. Hands down, ChilLED lights are the most versatile on the market.



Top Features

  • Modular Design – Hang from the top or sides of the fixture using the included T-slot triangle hangers
  • Slim Profile Passive Cooled Design – Only 1.375in thick & no moving parts
  • Growcraft Yield Max Spectrum – 3rd Gen 2020 technology – maximum results
  • Linear Power Control – 15W – 200W dimmable range
  • Light Engine Efficacy – 2.8 μmole/J – 2.71 μmole/J
  • Full System Efficacy – 2.63 μmole/J – 2.55 μmole/J
  • Made In The USA – Finest quality materials and workmanship
  • 3 Year Standard Warranty




    Includes

    • 1 x Fully Assembled Fixture (This Product)

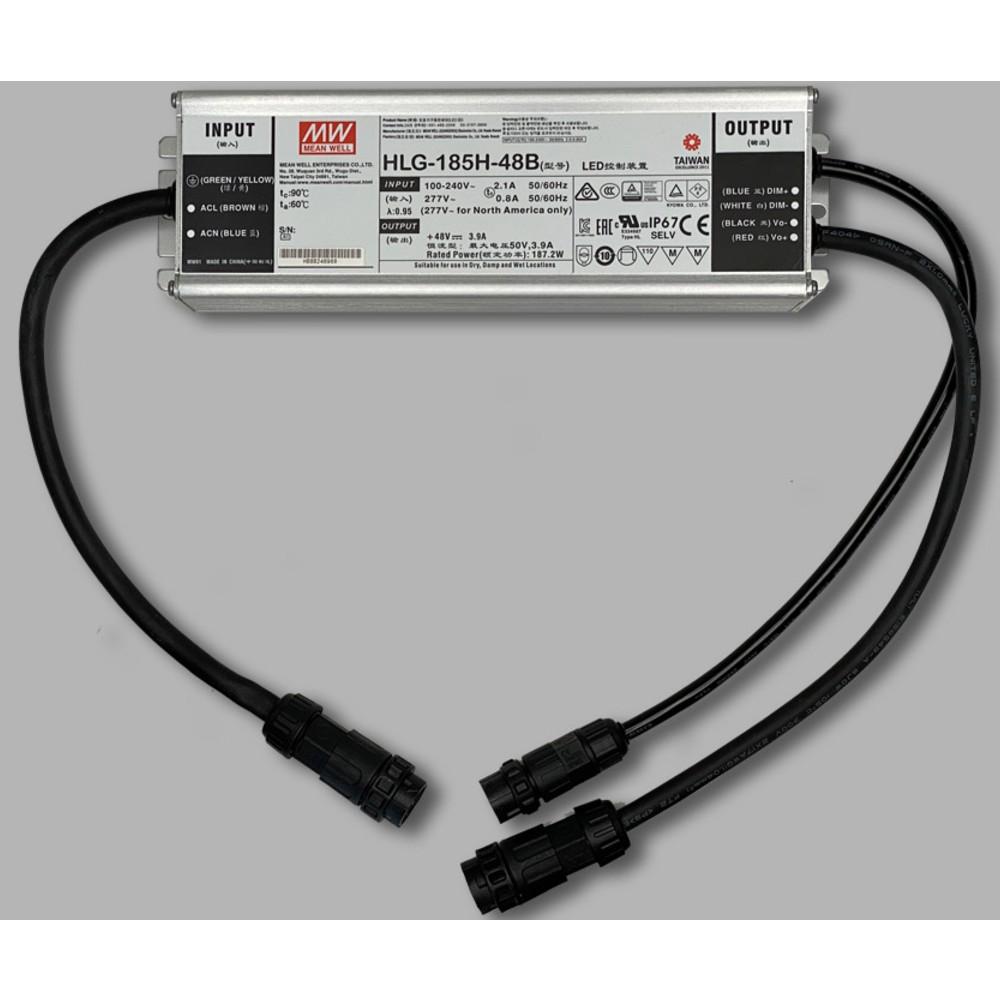

    • 1 x Push-Lock Mean Well HLG-185H-48B LED Driver
    • 1 x Push Lock 7ft Driver Extension Cable
    • 1 x Push Lock AC Power Cord (Your Choice of AC Plug)
    • 1 x Push-Lock Dimmer Pot
    • 1 x 3/16in Rope Ratchet – Metal Mechanism – 2 Pack



    Spectrum




    PAR

    3’x 3′ Canopy Area – 6 in Hanging Height

    Average PPFD – 526 µmol/(m2s)




    3’x 3′ Canopy Area – 12 in Hanging Height

    Average PPFD – 503 µmol/(m2s)



    3’x 3′ Canopy Area – 18 in Hanging Height

    Average PPFD – 466 µmol/(m2s)



    Specs

    Input Power Draw: 200W

    Input Voltage Range: 90-305 VAC

    120 VAC Current Draw: 1.67 Amps

    208 VAC Current Draw: 0.96 Amps

    240 VAC Current Draw: 0.835 Amps

    277 VAC Current Draw: 0.72 Amps

    Power Driver: Mean Well HLG-185H-48B

    AC Power Cord Length: 6.5 ft

    DC Extension Cord Length: 7 ft

    Dimming Range: 5-100%

    Light Engine Efficacy: 2.80 μmole/J – 2.71 μmole/J

    Power Driver Efficiency: 94% @ 230 VAC

    Full System Efficacy: 2.63 μmole/J

    Operating Temperature Range: 41°F – 95°F | 5°C – 35°C

    Operating Humidity Range: 10 – 90% Non-Condensing

    Generated Heat Load: 546 BTU/Hour

    Minimum Head Space Above Fixture: 6 in

    Recommended Hanging Height: 6-24 in

    Coverage Area: 2' x 2' and 3' x 3'

    Start Slow: Growcraft lights have VERY high light output and unless your plants are already acclimated to high light intensity, it is best to start slow with the light hanging high and possibly also dimmed. Then monitor plant reaction over a few days and slowly adjust as needed.

    Fixture Dimensions: 22.5 in x 19.5 in x 1.375 in

    Fixture Weight: 9.95 Lbs
