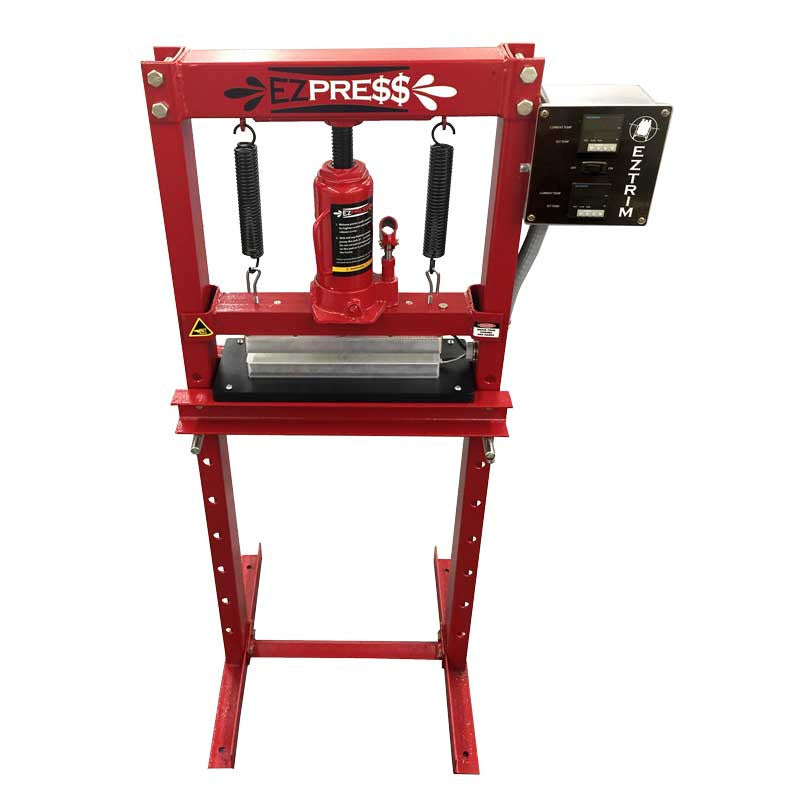

The EZ Press Pro from EZTrim is operated manually by using a 12 ton jack. It comes equipped with 3″ x 12″ heat plates that are individually controlled with a thermocouple and controller. It generates up to 12 tons of pressure, and like I mentioned above, can press over 1 oz of product at a time. If used just right, the EZ Press Pro can deliver some very impressive yields. If you’re consistent enough, its actually possible to press a whole pound in an hour. Those are great qualities if you’re producing for commercial use.

How to use the EZTRIM Rosin Press

  • Power on the unit
  • Set the temperature to 150°-200° F for both plates (temp is preset at factory to 170° F)
  • Fill the micron tubes with 1 oz. of product
  • Distribute the product evenly through the tube
  • Fold over 2" of the tube at the open end
  • Place the tube between 2 sheets of parchment paper
  • Place the tube and parchment paper centered over the heat plate
  • Release piston until raised to its highest point and tighten release screw
  • With full top/bottom strokes pump the jack 21 - 23 times. Do not exceed 23 full pumps on the jack as it can damage the frame
  • Hold in the pressed position for 30 sec. to 1 minute
  • Release the heat plates until the piston rises to its highest point and remove the parchment paper and tubes
  • Empty the micron tubes and repeat steps 3 - 11
  • EZTRIM Rosin Press Specs

    Weight - 115 lbs.

    Assembled Dimensions - 21″L x 20″W x 49″H

    Production - 1.5 oz / press

    Power - 120 VAC; 60 HZ; 6 Amps; 720 Watts (Not pneumatic)


    EZTRIM Materials

    Materials Exposed to Plants – Aluminum 6061 – FG; Nylon (70-90 Micron) – FG

    UL Certified Components – PID Controllers with Thermocouple; Relays; Heating Elements; Rocker; Switch; Power Cord; IEC Jack
