SYSTEM SPECIFICATIONS

Grow-It-LED's S3 Vegetative to Flower Spectrum offers high-efficiency warm and cool white diodes coupled with 660nm red for proper plant physiological growth.

SPECTRUM CONTROL

Casambi wireless spectrum control for smartphone or manual spectrum control with potentiometer dial. Casambi wireless control also includes scheduling and daily light integral capabilities.

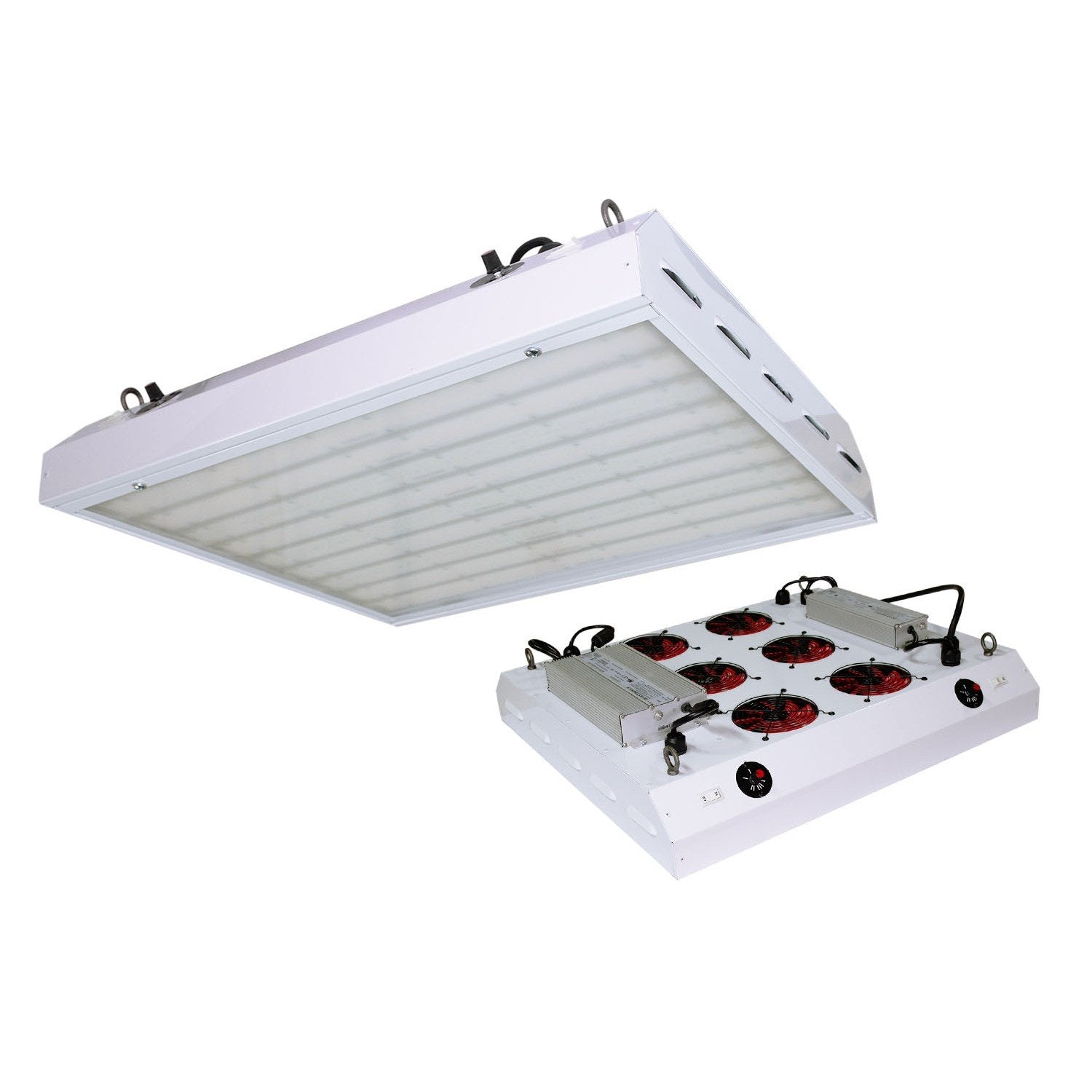

CONSTRUCTION

Robust aluminum housing for durability, custom-built heatsink for optimal heat dissipation, cooling fans for increased LED performance and extended life, manual on-off switch, internal power quick disconnect, internal disc thermistor for heat protection.

MOUNTING

Eyebolts for cable or chain attachment (standard). 4-point ratchet cables or Gripple Y-Fit toggle cables purchased separately.

RATINGS & WARRANTY

Temperature rated from - 40°F to 95°F, service life > 100,000 hours (L90), built to UL 1598 standard, BAA & RoHS compliant. 5-year product warranty. Consult factory for extended warranties.

Spectrum

Specs

Wattage draw:

  • Flower: 618 watts
  • Veg 231 watts

HID equivalent: 1000 watt HID fixture

LEDs: Samsung warm and cool white light diodes + 660nm Deep Red

LED lifetime: 100,000 hours (L90)

    PPF: 1460 umol/s

    PAR efficacy: 2.4 umol/j

    Coverage area:

    • Veg: 6' x 6'
    • Flower: 4' x 4' to 5' x 5'

    Mounting height:

    • Flower: 20-24"
    • Veg: 36"

    Thermal management: 6 x cooling fans

    Weight: 30 lbs

    Dimensions: 25.2" x 21.9” x 4.5"

    Operating/input voltage: 90-277VAC; 50Hz-60Hz

    Amperage:

    • Veg channel: 120v: 2.05A; 240v: 1.025A
    • Flower channel (both channels on): 120v: 5.15A; 240v: 2.57A

    BTUs at max power: 2108

    Driver efficiency: 95%

    Finish: White paint finish

    Product includes: Fixture with power cord (does not include hanging hardware)

    Additional information: Built to UL 1598 standard, BAA & RoHS compliant

      Recommended for:

      • Grow tents
      • Grow rooms
      • Large indoor grows
      • Vegetative growth and/or flowering
      • Full-cycle growing from seedling to flower
      • Soil, hydroponic, aeroponic, or aquaponic systems

      Manufacturer's warranty: 5-years
