LEDTonic Q7 LED Grow Light

2x Panels, 320W in total.
Samsung LM301H 3500K diodes &
Mean Well HLG-320H-48B driver.


The Q7 is built with light footprint uniformity and a practical design in mind.

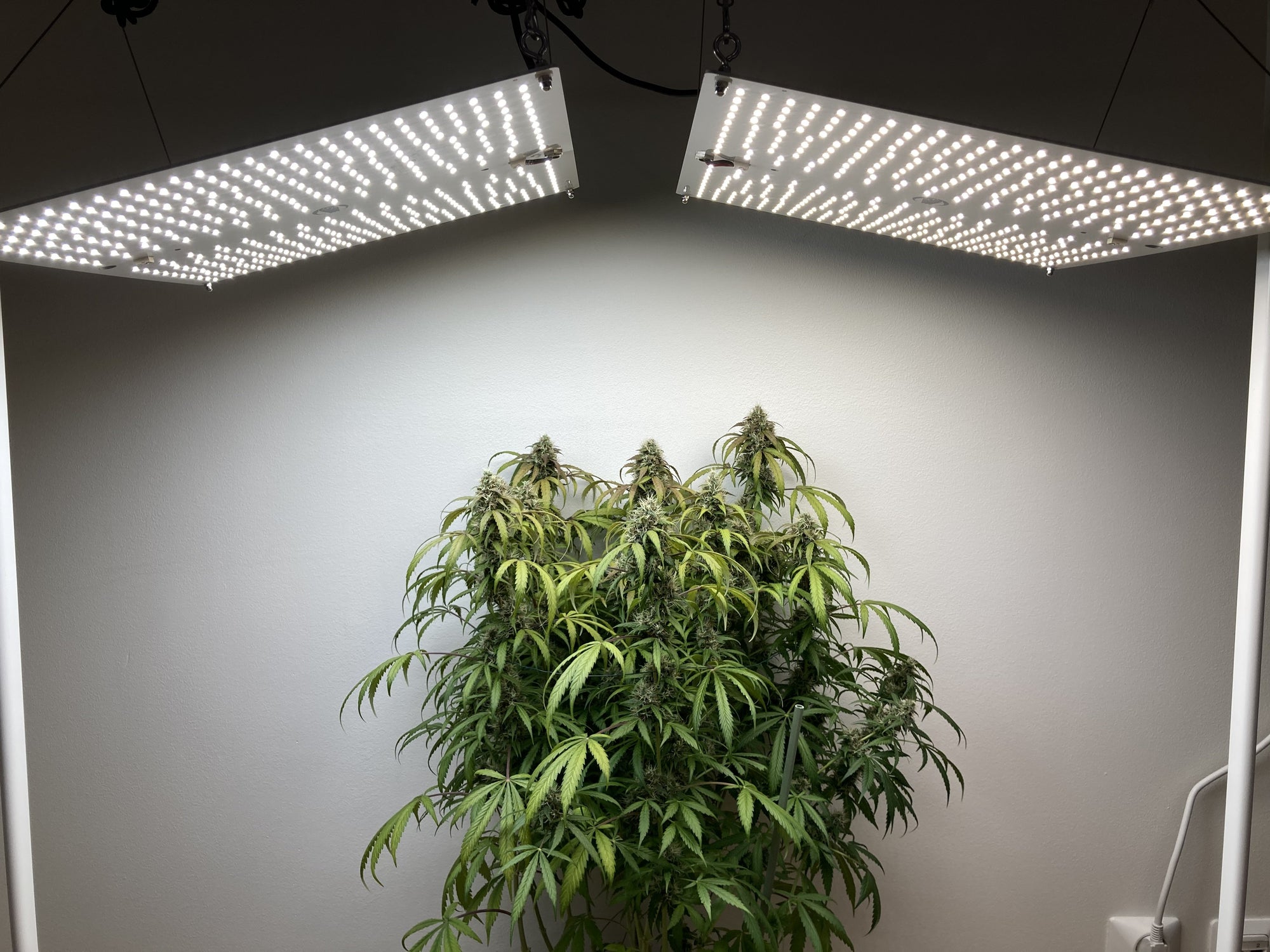

Two independently hanging LED panels connected to one Mean Well driver and dimmer create a superior light footprint to that of a single panel-light. Reducing hotspots and increasing spread is achiev also by the Q7's custom diode layout. 416 diodes are used per panel, all Samsung LM301H 3500K.

The panels are fitted with 5' (1.5m) cords connecting to the driver allowing for flexible adjustment and also giving the opportunity to hang the driver away from the panels, eg. outside a grow tent.

spectrum:

PPFD:

Light coverage:


2x4' (60x120 cm): Excellent (Average PPFD at 19": 929 µmol/m2/s, low: 805 µmol/m2/s, high: 1056 µmol/m2/s)
3x3' (90x90 cm): Excellent (Average PPFD at 19": 908 µmol/m2/s, low: 667 µmol/m2/s, high: 1069 µmol/m2/s)
4x4' (120x120 cm): Very good (Average PPFD at 15": 623 µmol/m2/s, low: 275 µmol/m2/s, high: 1015 µmol/m2/s)


Specifications:


PPFD (center spot, in a 3x3' grow tent): 1058 µmol/m2/s at 19" & 804 µmol/m2/s at 30".
Efficacy: 2.55 µmol/J (PPF/W).
Rated output: 320W.
Volt: 90-305V (Worldwide compatibility: US, CA, UK, EU, AUS, etc).
Hertz: 50/60 Hz.
Operational cost: 66 cents/day (16 hrs), at 13 cent/kWh, US average.
Diodes: Samsung LM301H.
Spectrum: White, 3500K.

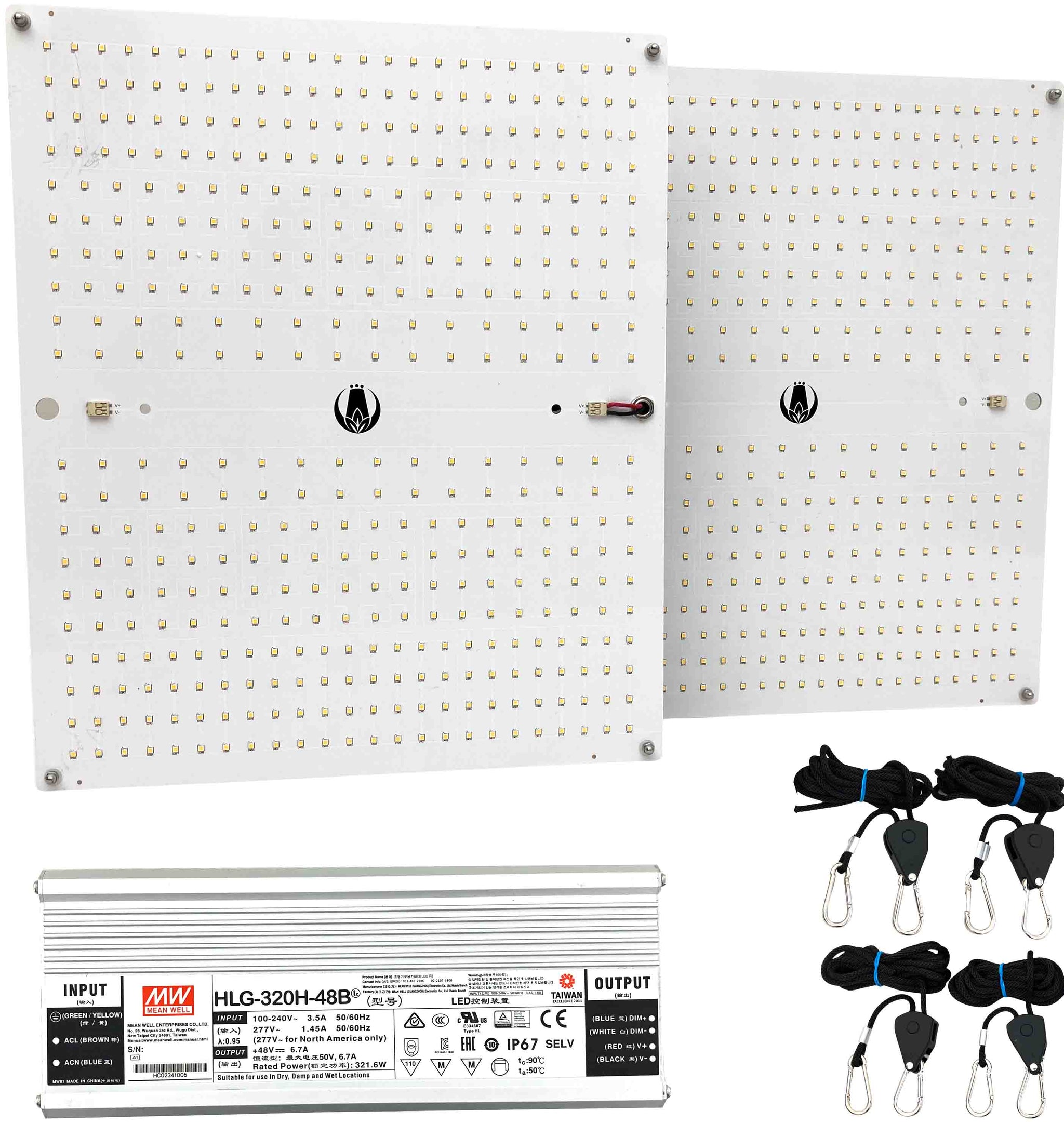

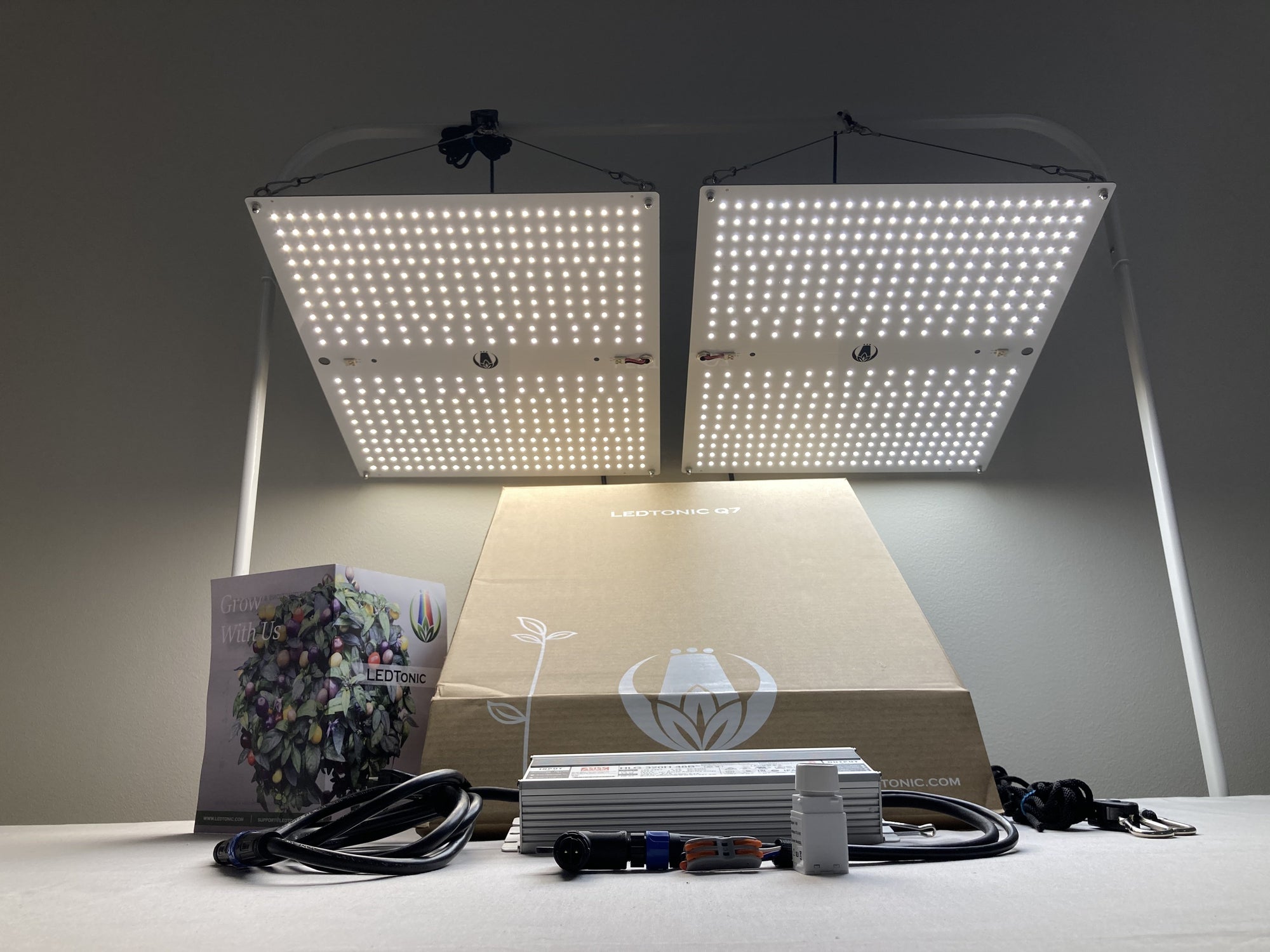

Inside the box:


1 LEDTonic Q7 320W Grow Light (2x panels with 5' waterproof cables & connectors)
1 LEDTonic manual
1 Mean Well HLG-320H-48B driver with 1-10V dimmer, US Plug
5 Rope ratchets
8 Metal hangers with carabiners
