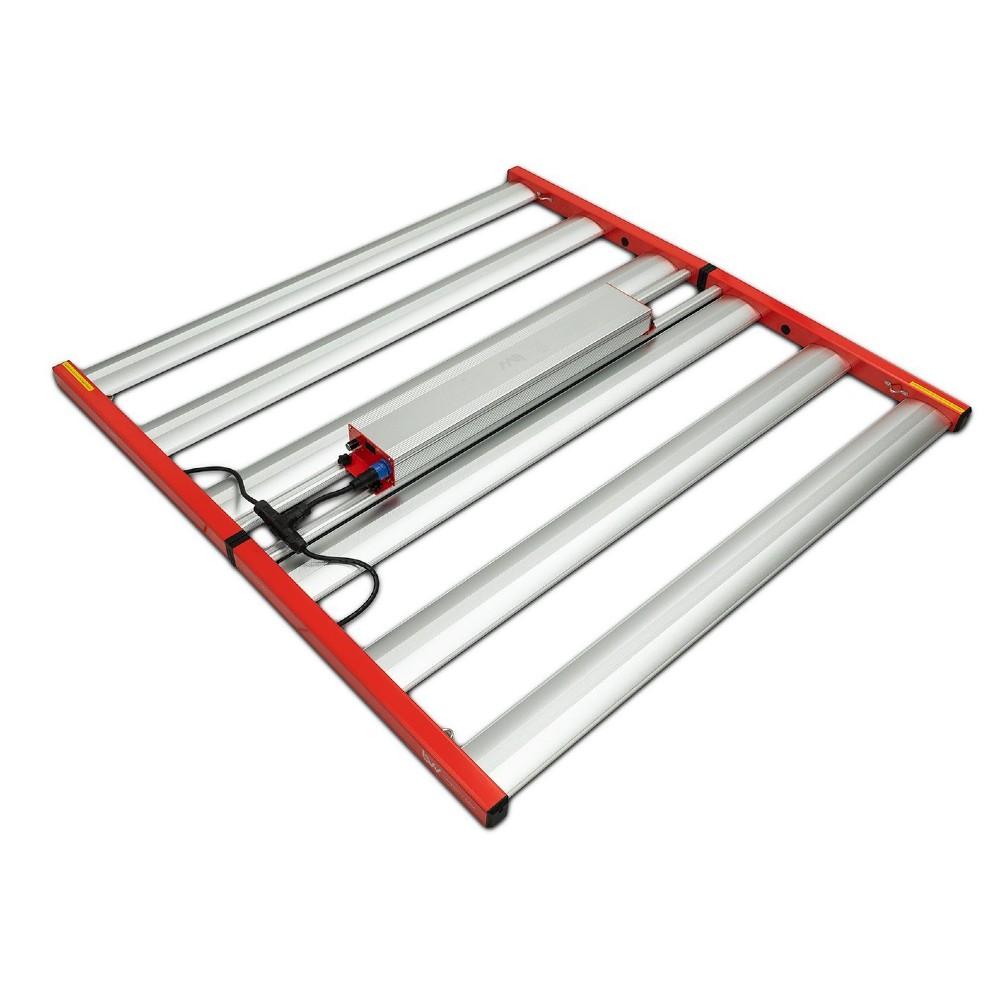

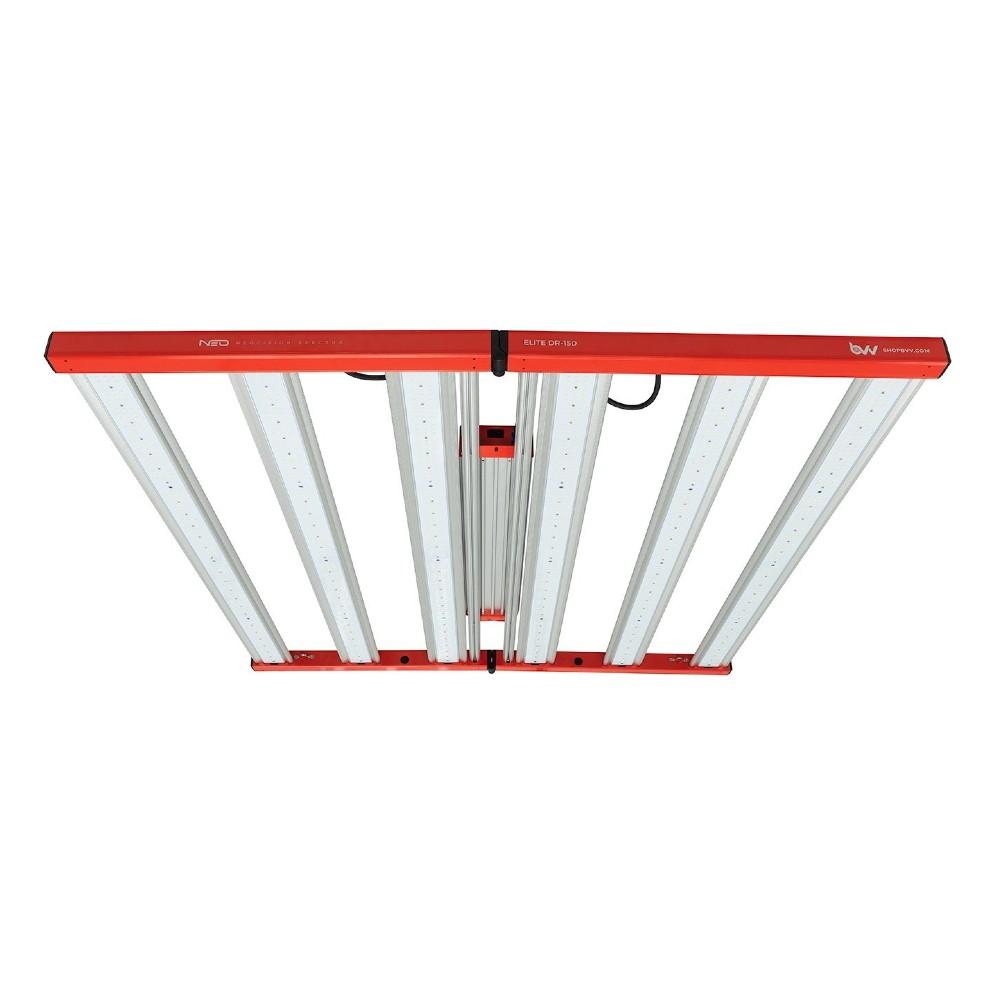

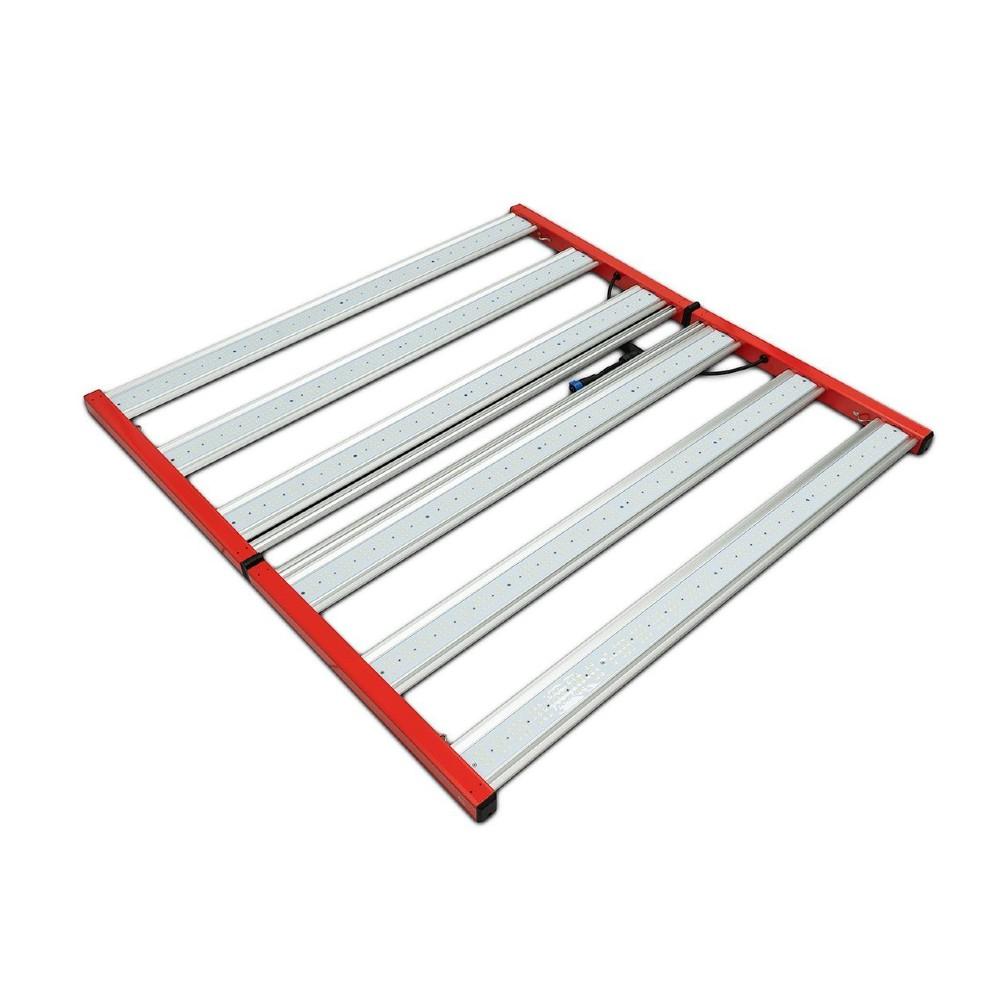

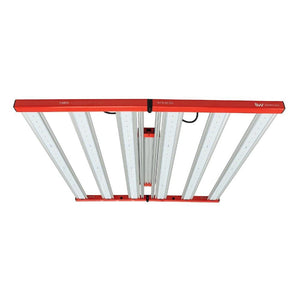

Neocision Spectra Elite fixtures feature a 20.6% blue spectra and 45.1% red spectra with a peak at 660nm for your flowering plants. This unique spectra mix creates stronger plants for nutrient uptake with maximized red for increased photosynthesis. Get increased yields, quality bud formation and high rates of cannabinoid production levels.
FEATURES
- Efficacy up to 2.85 Micromoles / J
- Industry Leading Horticulture LEDs
- RJ Port for Plug and Play Control Systems

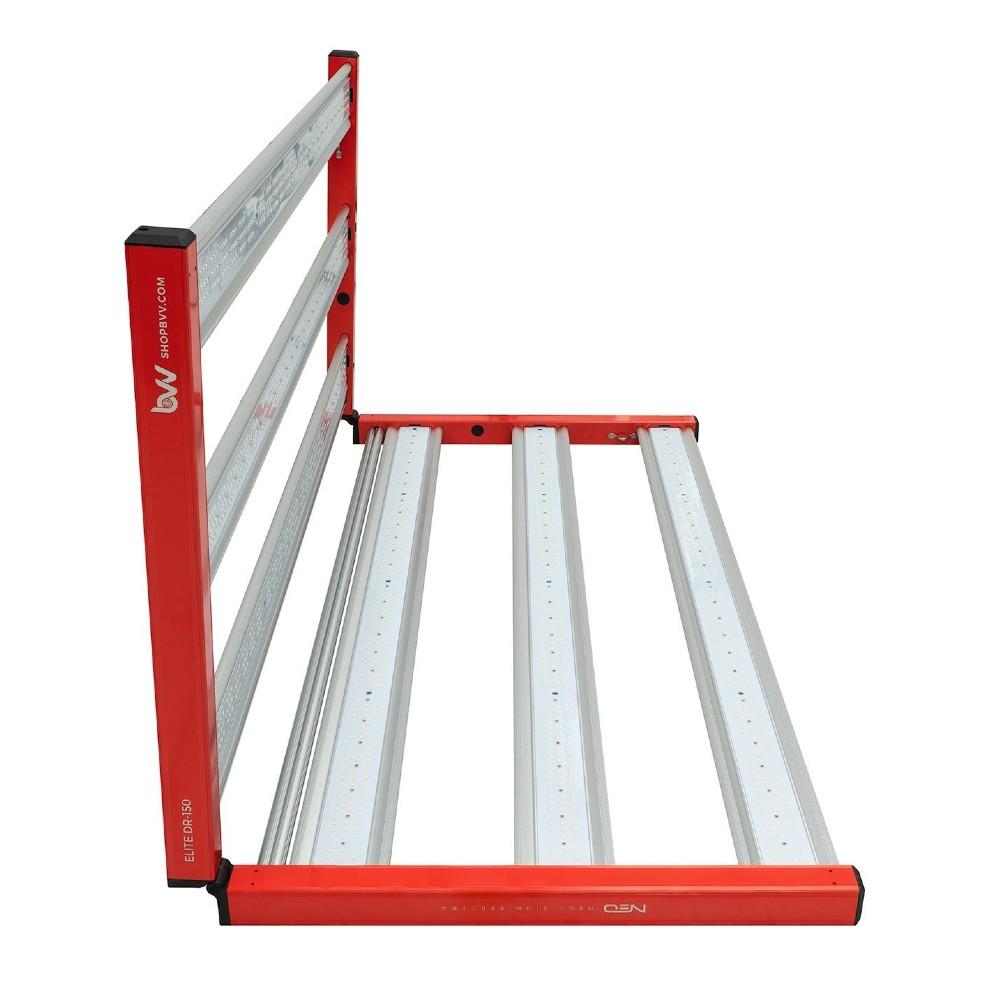

- Folding Design for Fast and Easy Installation
- Leading 660nm LED Count – 150 660nm diodes Per Fixture
- 7 Year Limited Warranty on Fixture
- 8 Year Limited Warranty on Driver
| SPECTRUM AND EFFICACY | |
|---|---|
| PPF Efficacy: | 2.85 at 240 VAC |
| Photon Flux (µmol/s) (400-700nm): | 1939 |
| Photon Flux Blue (µmol/s) (400-500nm): | 400 |
| Photon Flux Green (µmol/s) (500-600nm): | 666 |
| Photon Flux Red (µmol/s) (600-700nm): | 874 |
| Total Blue/Red - Energy Bands: | 1274 |
| % Blue: | 20.64% |
| % Green: | 34.34% |
| % Red: | 45.06% |
| POWER | |
| Power Consumption: | 680W AC |
| Driver: | Sosen |
| Power Factor: | >0.95 |
| Surge Protection: | 6 KV |
| 208V: | 3.44A |
| 240V: | 2.98A |
| 277V3: | 2.58A |
| DIMENSIONS | |
| Fixture Size (driver mounted on the fixture): | (L) 43.9” x (W) 43.9” x (H) 4.1” |
| Fixture Size (without driver): | (L) 43.9” x (W) 43.9” x (H) 1.6” |
| Power Supply Dimension: | (L)23” X (W) 6.5” X (H) 3” |
| Driver Net Weight: | 10.1 lb. |
| Fixture Net Weight: | 20.4 lb. |
| OTHER | |
| Mounting Height | >6” above canopy |
| Beam Angle | 120 Degree |
| Input Voltage | 200 - 277 VAC |
| Manual Dimming Knob | Yes |
| Built In Control Ports | Yes |
| Power Cord Length (Extensions available) | AWG 18, 6 Foot |
| Standard Plug | 240 VAC - NEMA 6-15P |
| Substitute Plugs (Upon request at order) | 277 VAC, Pigtails |
| Adjustable Height Hanging Kit Included | Yes |
| Fixture Warranty | 7 Years Limited |
| Driver Warranty | 8 Years Limited |
| ETL Safety Certified | Conforms to UL 1598:2018 Ed.4Certified to CSA C22.2#250.0:2018 Ed.4*ETL Safety Certified No. 5020070 |
| DLC Listed | Yes |
