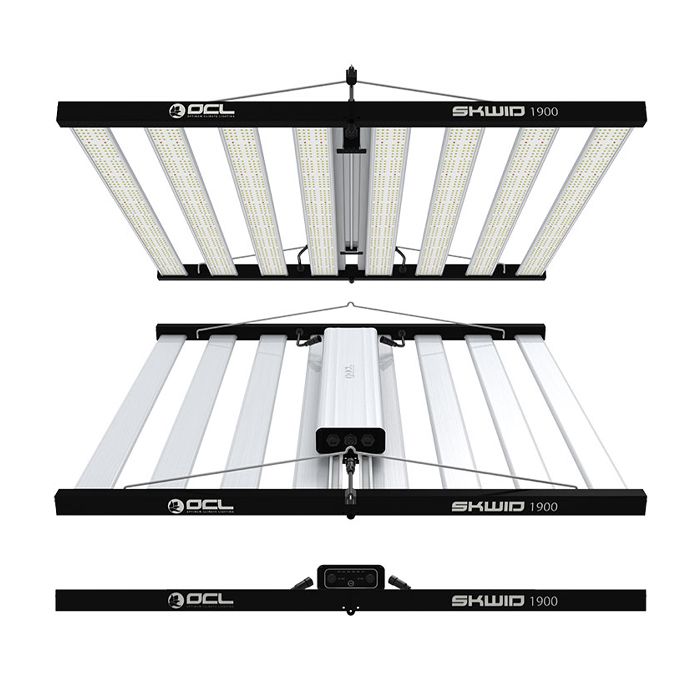

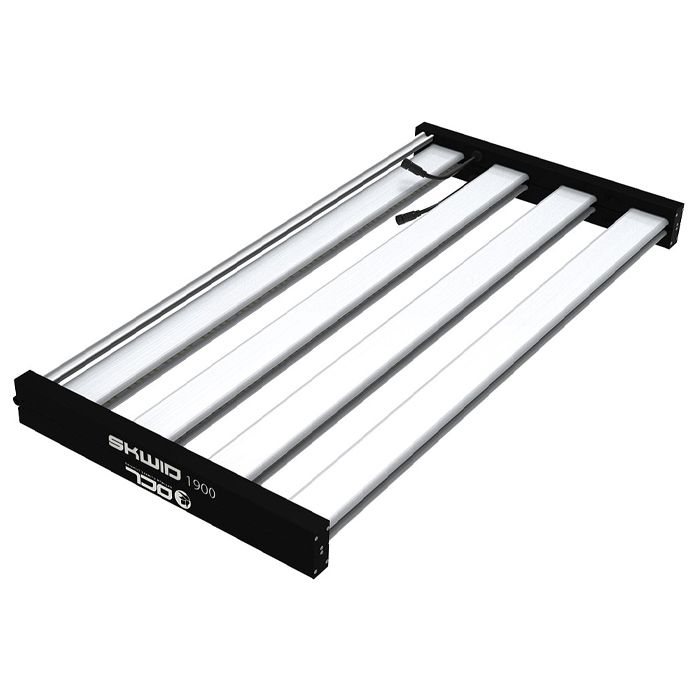

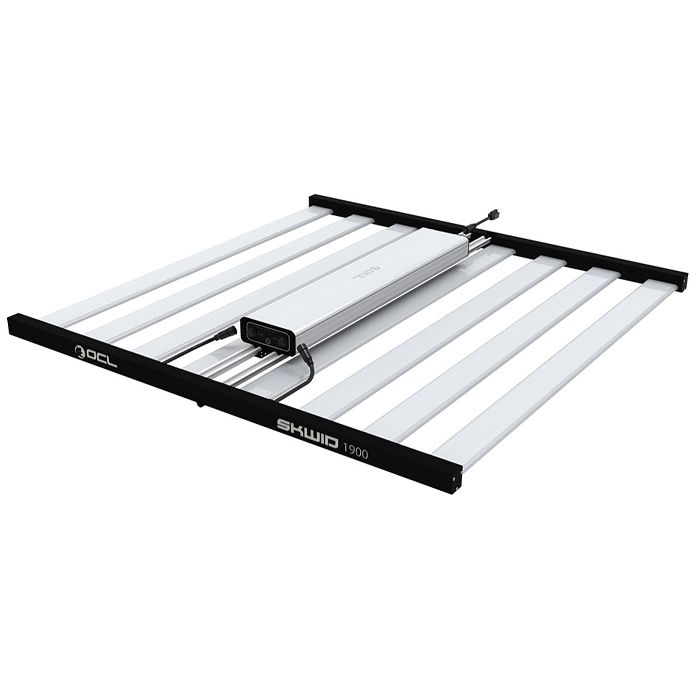

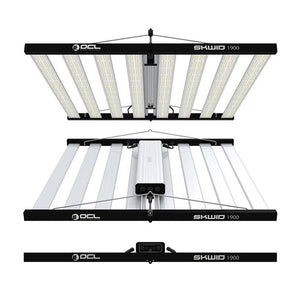

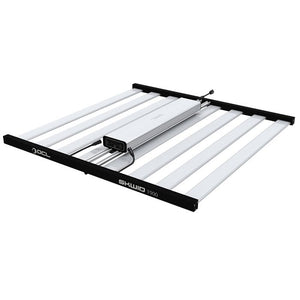

The OCL SKWID 1900 PRO LED is the next level in professional fixtures with the ability for central control with the OCL Lightning Touchscreen controller. With OCL lighting systems you are in control of the light! The OCL SKWID 1900 PRO LED grow light offers an absolute market-leading PPFup to 2070 μmol/s!
FEATURES
FORM FACTOR
The OCL SKWID 1900 PRO LED is a high performance energy efficient alternative to the traditional commercial 1000W DE HID fixtures.
APPLICATION
OCL SKWID 1900 PRO LED is developed for growers by growers whose cultivation is in low rooms, on vertical racks, over rolling benches, and in tents. For maximum uniformity, hang the fixture 6-12 inches from the crop.
EFFICIENCY AND OUTPUT
The efficacy of this fixture is very impressive at 2.9 μmol per watt. At 680 watts this will lead to 1938 μmol s-1 The eight bars are passively cooled in an extra wide shape to enhance spread and coverage. The absence of moving cooling parts, reduces the possibilty of mechanical failure.
EXTERNAL CONTROL
The OCL SKWID 1900 PRO LED is dimmable and delivers broad, full-spectrum light anywhere from 400w to 680w while maintaining efficiency. The dim switch on the driver makes it easy to control the light intensity. An optional OCL Lightning Touchscreen Controller can also be applied to achieve more complex dimming requirements.
SPECIFICATION
| True Power | 680W |
| AC Input Voltage | AC 100V-277V / 50-60Hz |
| Ampere | 3.1A @ 220V, 2.45A @ 277V |
| LED Brand | Samsunglm301h+Osram |
| Efficiency | 2.9umol/W at 640W |
| Waterproof lever | IP65 |
| Material | Aluminium |
| LED Driver | Inventronic LED Drivers |
| Housing Colour | Silver |
| Control | Via an external controller/DimmingBoard |
| N.G./G.W. | 16.35kg / 20.3kg |
| Dimensions (L x W x H) [mm] | 1120 x 1100 x 100.5 |
| Working temperature | -20°~ 40° |
| BTU | 2178 |
| Lifetime | 50000H |
