SpecGrade LED's bi-directional interior lighting Extra series is designed to complement existing overhead lighting to increase yield from 10% to 20%. The leaves of most plants prohibit PAR from top lighting to the level on the stem.

This targetable internal illumination will surgically add an additional 110+ μmol/s where it’s needed most to help consistently create bigger, stronger plants without adding significant heat. Research has shown that LED lights convert to sugar more efficiently, creating healthier plants.

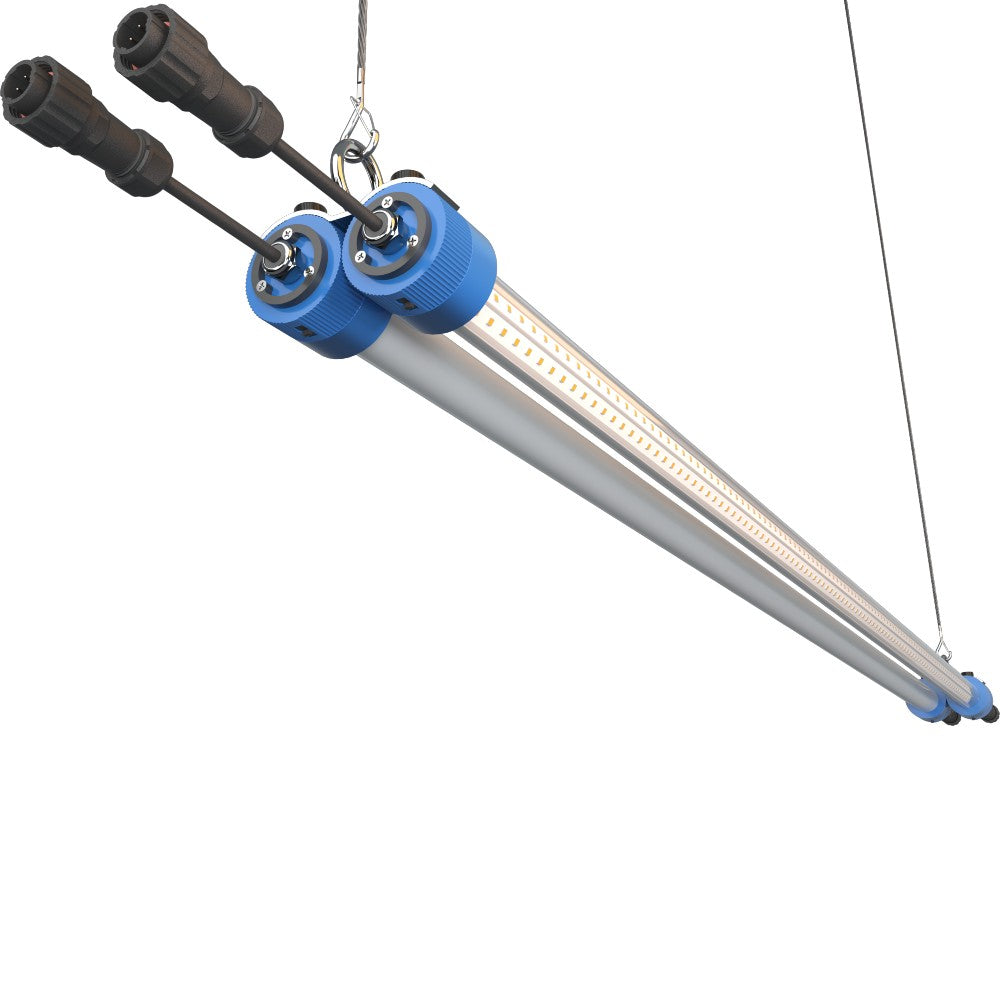

The tubular body style of the Extra-48 allows individual lamps to rotate independently up to 360 degrees. Growers can easily position the Extra-48 exactly where they wish to provide additional lighting to the plants.

Like all horticultural lighting from SpecGrade LEDs, the Extra-48 is IP66 and UL8800 rated, suitable for horticultural environments and passively cooled. The Extra-48 is compatible with 0-10 volt dimmers and daisy-chaining.

SpecGrade's M1 spectrum
M1 is designed to enhance the flowering stage of plant life. Feedback from our customers indicates a 10%-20% increase in the yield of plants. While inter-canopy growth lighting is not a new concept, it is an established method of increasing yields.



Specifications



PPF ±5%: 100 µmol/s

System Power ±5%: 48W

Efficacy: 2.2 µmol/s

Optic: 150º Distribution

Spectrum: M1

Thermal: 100% Passive

Expected Life: L90> 50,000 hrs.





Rating: IP66

Safety: ETL Listed to UL 8800, UL 1598, UL 8750

Voltage: 100-277VAC (V01)

Surge Protection: 4kV (V01), 6kV (V04)

Dimmable: 0-10V

Power Factor: >0.95

THDi: <15%

Driver: Integral

Weight: 3 lbs

Dimensions: 48.27” X 3.5” X 3.0"

Mounting: Clip Ring (std.)

Finish: Blue/White
