Specification for the SpecGrade Extra-60
- PPF | 136 μmol/s
- System Power | 60 Watts (30 per bar)
- Efficacy | 2.23 μmol/J
- Optic | 120 Degree Distribution
- Spectrum | M1 Flowering
- Thermal | 100% Passive
- Expected Life | > 100,000 hrs.
- Voltage | 120 - 277 VAC
- Dimensions | 4.9" x 42.5" x 5.4"
- LEDs | Proprietary blend of Samsung, Lumileds and OSRAM chips
- Frame | Powder Coated Stainless Steel
- Finish | Polyester Powder Coat
- Heat Sink | AL6061 Aluminum
- Dimming | 0 - 10 Volt
- Typical Mounting Height | ≥6" Above Canopy
- Cord Length | 15 ft. cord
- THD | < 4%

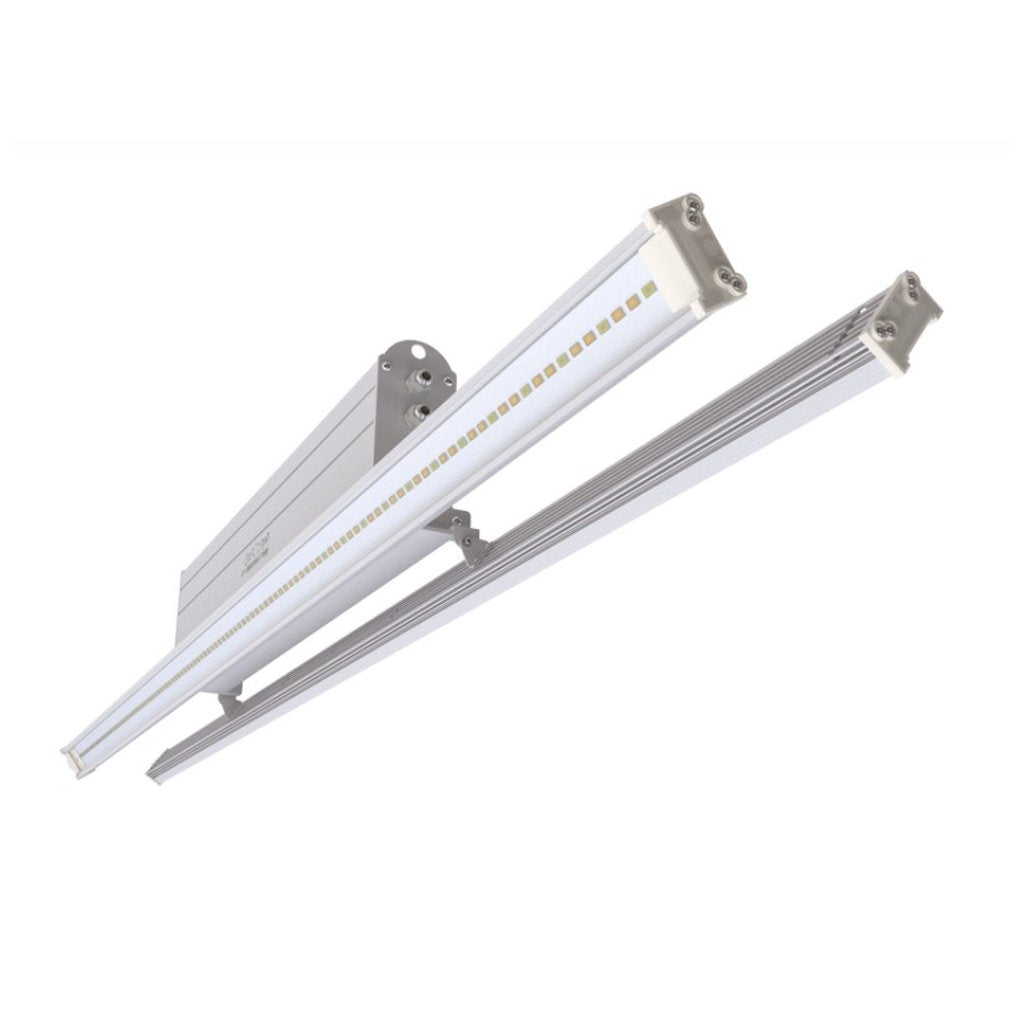

Extra-60 2-Bar Intra-Canopy LED Grow Light
SpecGrade LED’s bi-directional inter-lighting Extra series is designed and engineered to supplement the exiting top lighting in an effort to increase yields from 10% to 30%. The leaves of most plants prohibit the PAR from top lighting to reach the levels on the stalk.
Our aim-able inter-lighting will surgically add an additional 130+ µmol/s where it is needed most helping create consistently a more vital and stronger plant without adding significant heat. Research indicates that LED light can more efficiently be converted into sugar creating a healthier plant.
Every SpecGrade grow light seamlessly integrates the spectral, thermal, and electrical components into one sustainable investment. Our unwavering focus on innovation, reliability and sustainability will provide the professional grower with the highest yields and quickest ROI.
Modular Design
The modular construction enables the grower to update the printed circuit boards with more efficient LEDs as technology evolves.
Intensity
Deliver additional PAR directly into the plants lower canopy where light is limited.
Precision
Our M1 spectrum is specifically designed for maximum absorbtion of critical spectral wavelengths.
Engineering
Proprietary thermal management system radiates less heat
SpecGrade carries light fixtures for every phase of growing
Note: The Extra-60 comes with an adjustable hanging cable system and a 0-10V dimming cord
SpecGrade's M1 Spectrum
M1 was designed to enhance the flowering stage of a plant’s life. Our client feed-back indicates increased yields of 10%-20% for medicinal plants plants.While the inter-canopy grow lighting is not a new concept, it is a well-recognized method of increasing yields.
