SunPlix 630W double ended low frequency square wave CMH grow light fixture is manufactured with patent Fuzzy Logic technology. This technology can extend lamp lifetime so you can use your light for many years. The light saves energy by 50%, improves plant quality, increases yield and gives off less heat.

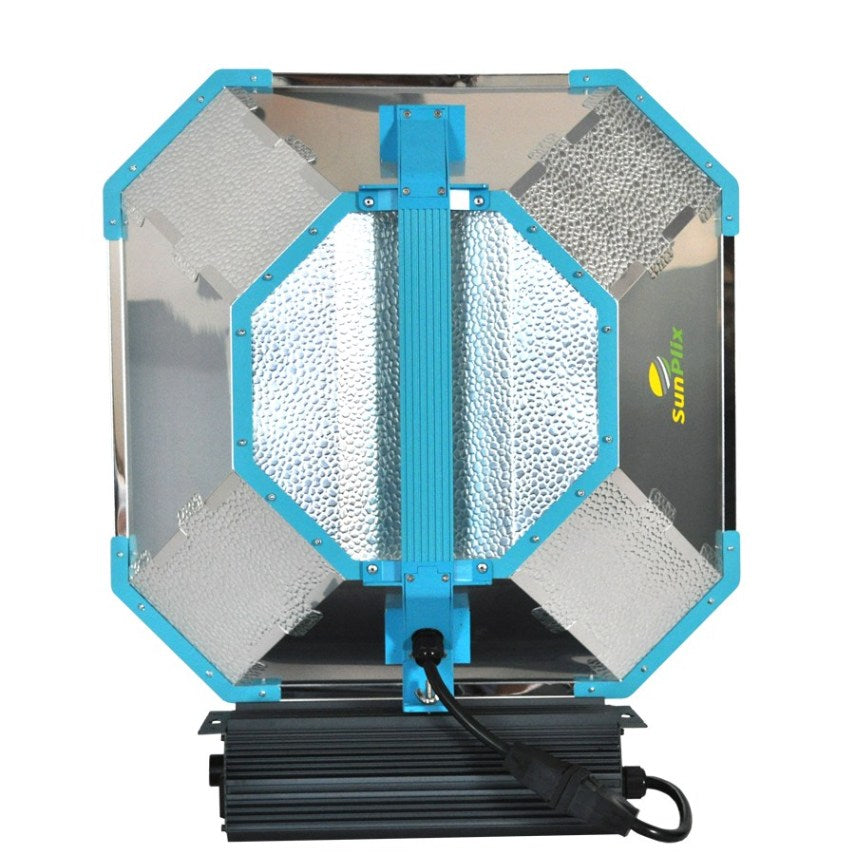

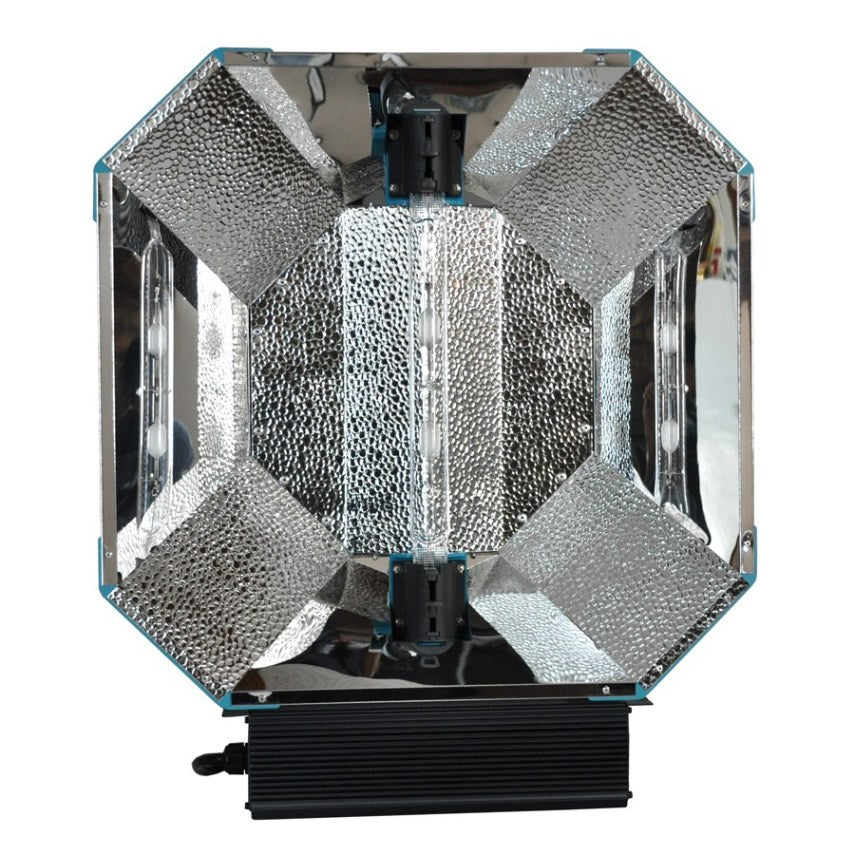

Characteristics of CMH-630F/N Double Ended CMH Fixture
| Name | Description |
|---|---|
| Input power | 685W |
| Output power | 630W |
| Operating voltage | 120V/208V/230V/240V (277V, 347V, 480V optional) |
| Amperage drawn | 5.71A/120V, 3.29A/208V, 2.98A/230V, 2.85A/240V |
| Safe voltage | 94V~276V |
| Input frequency | 50/60Hz |
| Power factor | >0.99 |
| THD | <6% |
| Efficiency | >92% |
| Lamp wire length (Max) | 26 feet (16 gauge lamp wire) |
| Protection functions | Protection of short-circuit, open-circuit, over-voltage, under-voltage, over-current, hot lamp startup, lightning, over heat, and lamp failure with lamp life warning. |
| Size | L: 24.87”, W: 20.62”, H: 6.50” |
| Net weight | 13.3 lbs |
| Warranty | 3 years |

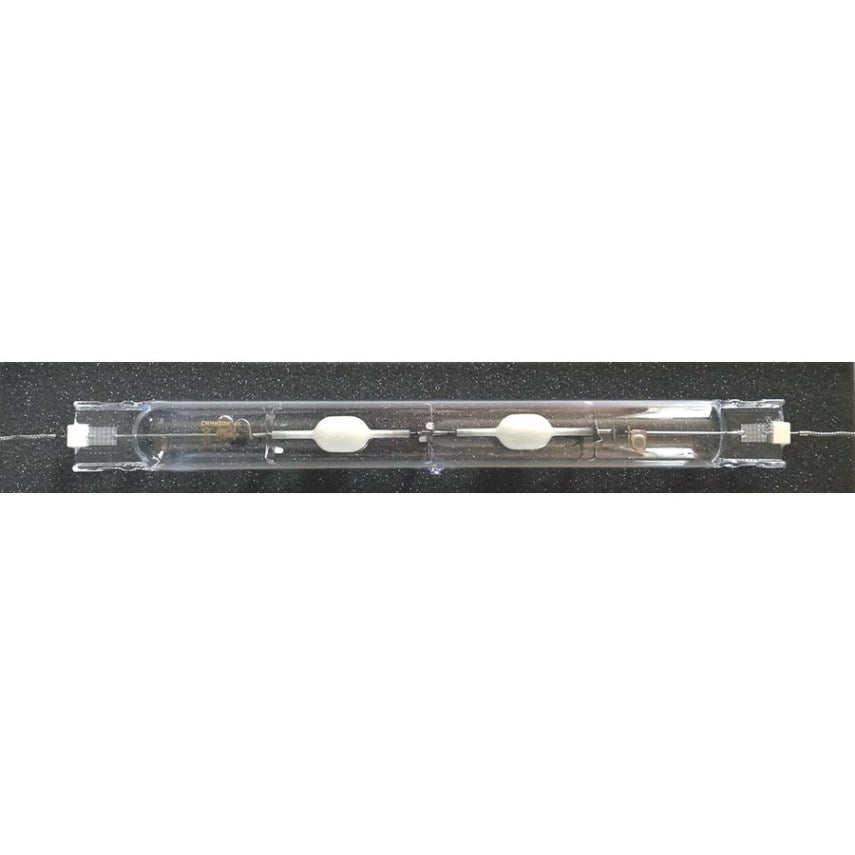

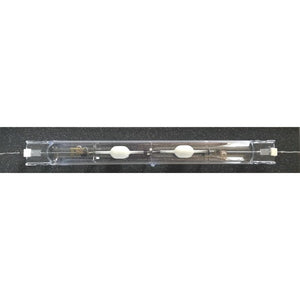

Compatible Lamps:
SunPlix CMH ballast is the real low frequency, square wave CMH ballast!
Other brand CMH ballast is NOT the real low frequency, square wave CMH ballast
