Results- Market-leading efficiency combined with our tunable Yield Max spectrum equals unmatched performance.

Quality- Highest build & component quality - never sacrificed for profits. ChilLED grow lights are built to last.

Versatility- Retrofit into your environment with ease. Hands down, ChilLED lights are the most versatile on the market.

Top Features

  • DIY Friendly Modular Design – If you can dream it, you can build it!
  • U Frame Structure Platform – Provides ready-made framework – no need for drilling or tapping

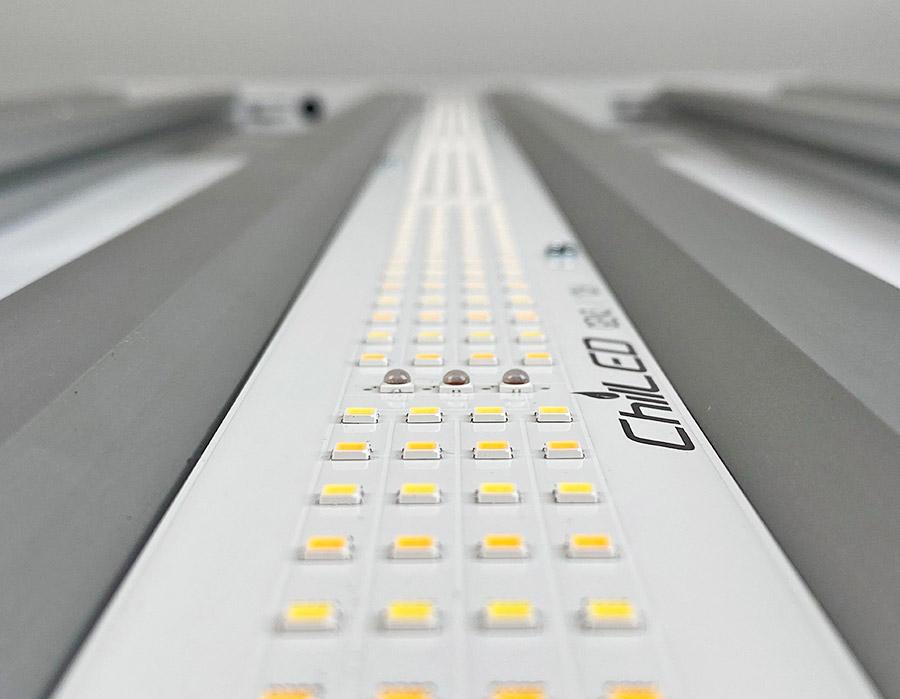

  • Innovative Rugged LED Light Bar System – Large footprint for even canopy coverage
  • Slim Profile Passive Cooled Design – Only 1.375in thick & no moving parts
  • Growcraft Yield Max Spectrum – 3rd Gen 2020 technology – maximum results
  • Linear Power Control – 50W – 1000W dimmable range
  • Light Engine Efficacy – 3.26 μmole/J – 2.73 μmole/J
  • Full System Efficacy – 3.08 μmole/J – 2.58 μmole/J
  • Made In The USA – Finest quality materials and workmanship

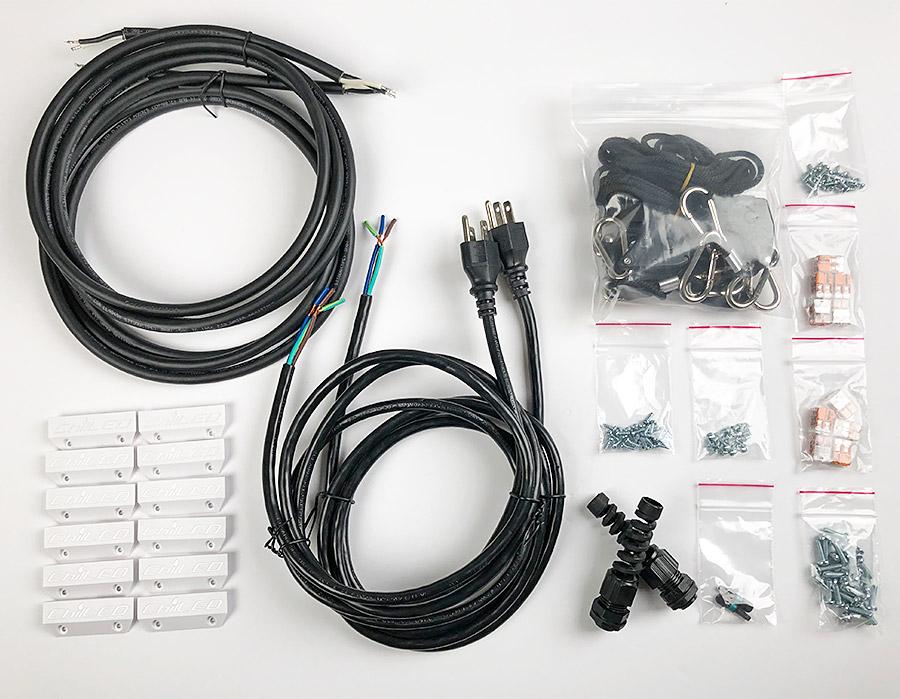

    Includes

    • 2 x Growcraft DIY U-Frame – 4×4
    • 2 x Growcraft DIY U-Frame Cover – 4×4
    • 2 x Growcraft Power Distribution PCB – 4×4
    • 6 x Growcraft 40in Heatsink
    • 6 x Growcraft 40in LED Board
    • 1 x M3 – 6mm Plastite PCB Screw – 25 pack
    • 1 x M3 – 8mm Plastite PCB Screw – 25 pack
    • 1 x M3 – 5mm Countersunk Torx Screw – 25 pack
    • 1 x M4 – 14mm Torx Screw – 25 pack
    • 6 x Growcraft PCB End Cover 2 Pack – ChilLED WHITE
    • 2 x Growcraft Strain Relief Cable Gland – Black
    • 1 x 20 AWG Red & Black Solid Core Wire Pair – 6ft
    • 2 x Growcraft 48Vdc LED Power Cable – 7ft
    • 2 x 120VAC USA Power Cord – 6.5ft

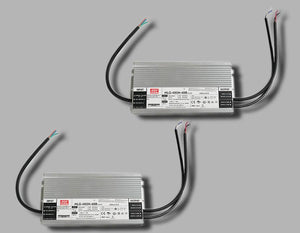

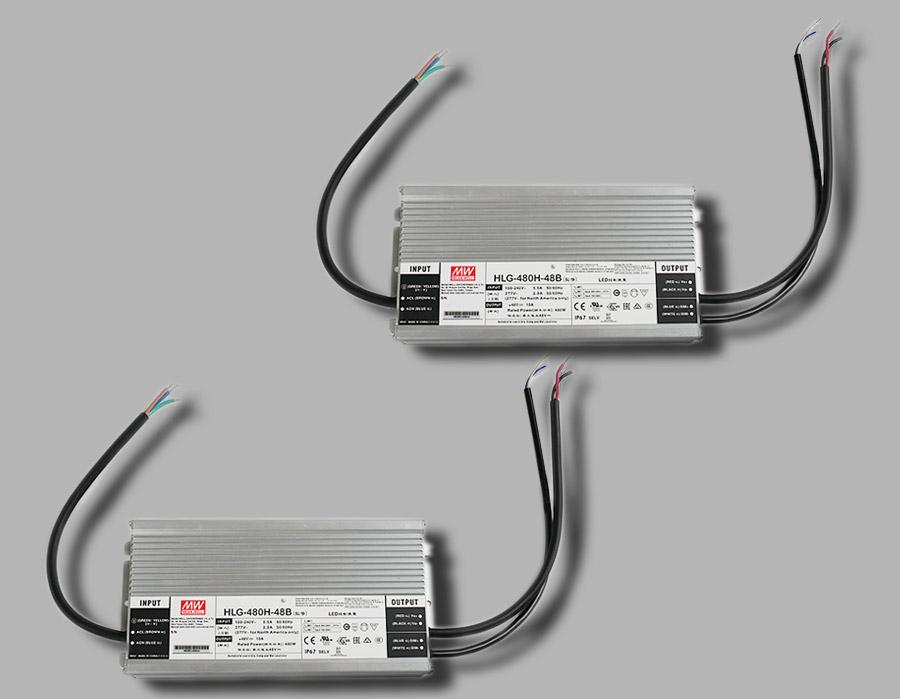

    • 2 x MEAN WELL HLG-480H-48B LED Driver
    • 4 x WAGO 221-412 Wire Splicing Connector (5 Pack)
    • 2 x Dimmer Pot
    • 1 x Growcraft DIY U-Frame Hole Plug
    • 4 x Rope Ratchets

    Spectrum

    Assembly Instructions Video

    PAR

    5’x5′ Canopy Area – 12 in Hanging Height

    Average PPFD – 1187 µmol/(m2s)


    5’x5′ Canopy Area – 18 in Hanging Height

    Average PPFD – 1077 µmol/(m2s)

    5’x5′ Canopy Area – 24 in Hanging Height

    Average PPFD – 971 µmol/(m2s)

    5’x5′ Canopy Area – 30 in Hanging Height

    Average PPFD – 829 µmol/(m2s)

    Comparison

    Specs

    Input Power Draw: 1000W

    Input Voltage Range: 90-305 VAC

    120 VAC Current Draw: 8.4 Amps

    208 VAC Current Draw: 4.8 Amps

    240 VAC Current Draw: 4.2 Amps

    277 VAC Current Draw: 3.6 Amps

    Power Driver: 2 x Mean Well HLG-480H-48B

    AC Power Cord Length: 6.5 ft

    DC Extension Cord Length: 7 ft

    Dimming Range: 5-100%

    Light Engine Efficacy: 3.26 μmole/J – 2.73 μmole/J

    Power Driver Efficiency: 95% @ 230 VAC

    Full System Efficacy: 3.08 μmole/J – 2.58 μmole/J

    Operating Temperature Range: 41°F – 95°F | 5°C – 35°C

    Operating Humidity Range: 10 – 90% Non-Condensing

    Generated Heat Load: 3,412 BTU/Hour

    Minimum Head Space Above Fixture: 10 in

    Recommended Hanging Height: 18-30 in

    Coverage Area: 5 x 5 ft

    Start Slow: Growcraft lights have VERY high light output and unless your plants are already acclimated to high light intensity, it is best to start slow with the light hanging high and possibly also dimmed. Then monitor plant reaction over a few days and slowly adjust as needed.

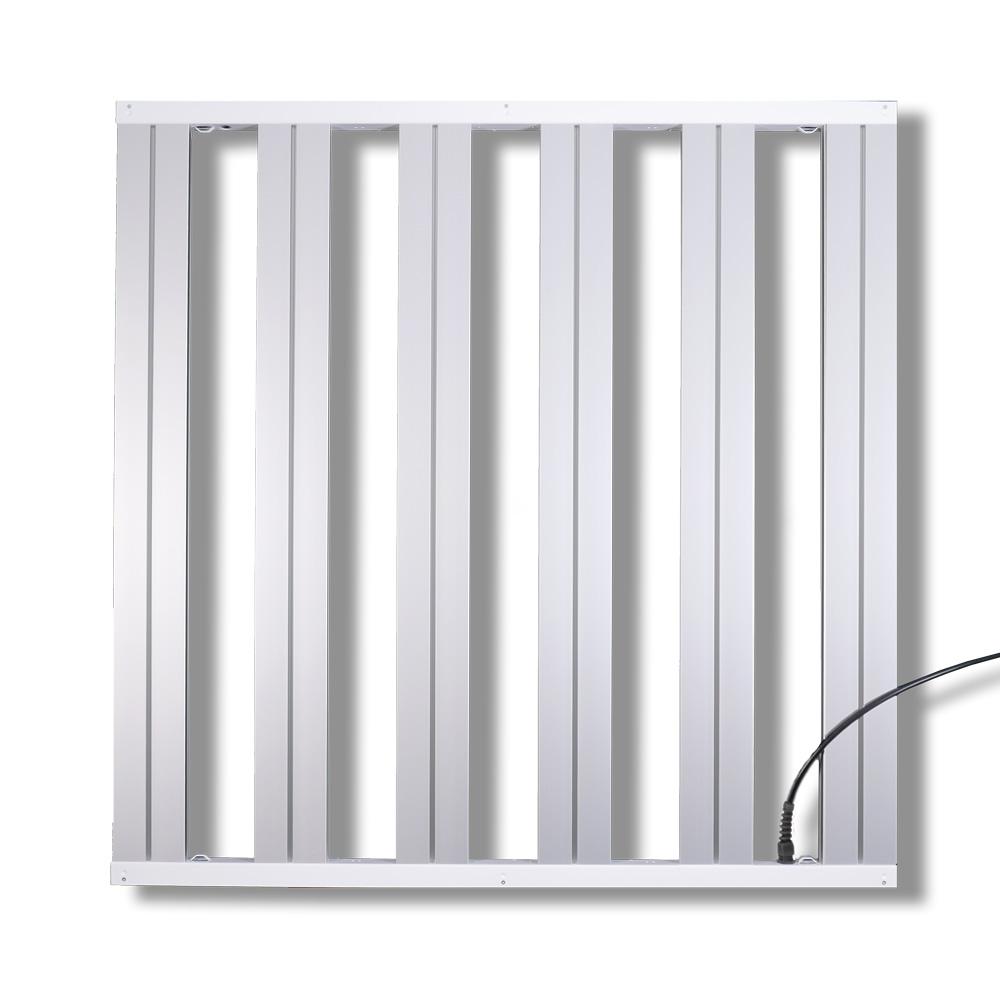

    Fixture Dimensions: 42.5 in x 42.15 in x 1.375 in

    Fixture Weight: 33.85 Lbs
