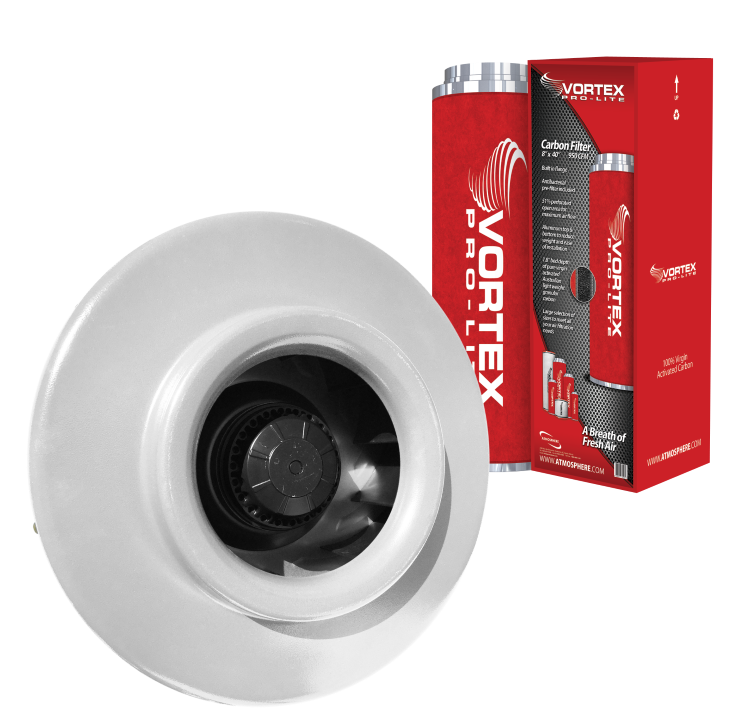

Vortex VBC800 729 CFM 8" Inline Fan + Pro-Lite Carbon Filter

Vortex VBC800 729 CFM 8" Inline Fan + Pro-Lite Carbon Filter

$350.99

| /

Size

Collections: 8" Kits , All Fan & Filter Kits , Brands Climate Control & Hydroponic Accessories , CLIMATE CONTROL Vortex

Category: 8" , C_FANFILTERKIT , Climate Control , Fan & Filter Kits , Vortex by Atmosphere

Type: Fans & Filters

Discover the Vortex Powerfans VBC800 729 CFM 8" Inline Fan

Vortex Powerfans VBC800 729 CFM 8" Inline Fan is specifically designed for warm and humid applications. Available in sizes ranging from 4" to 12" and can develop up to 1010 CFM. Every model is built for a connection to a standard round duct.

Carbon filters with built-in 8" flange and an antibacterial pre-filter included. It comes with an Aluminum top and bottom to reduce weight and increase ease of installation. 51% perforated open area for maximum airflow. 1.8" bed depth of pure virgin activated Australian lightweight granular carbon. Large selection of sizes to meet all your air filtration needs.

  • Energy efficient & quiet operation
  • Lightweight & super easy to install
  • Engineered for maximum boost with minimum noise
  • Motor features a permanently lubricated bearing that operates quietly and requires no maintenance

Detailed Description:

  • Brackets included for wall or ceiling mount
  • Permanently lubricated sealed bearings
  • External rotor motor with automatic reset thermal overload protection
  • Suitable for airstream temperatures up to 140°F (60°C)
  • Aerodynamic design allowing more air flow
  • Airflow capacity from 173 to 1010 CFM
  • Speed controllable
  • 5-year warranty

All VBC Products incorporate motors suitable for 120 Volts ACHz Electrical supply only.

Duct Dia. RPM Volts Rated Watts Max Amps Max Ps
8" 2550 120 205

1.75

 3.16"

All Vortex PRO-lite products come with a PREfilter included.
All Vortex PRO-lite have a Max Operating Temperature of 175ºF

Model 8 x 24/40
Recommended Maximum CFM 750/950
Flange 8"
Outside Diameter 11.5"
Height 24 in 70 cm/40 in 101 cm
Weight 19.6 lbs/32.8 lbs
Carbon Bed Width 1.8" (46mm)
Recommended Fan VTX800, VTX800L, S-800, VBC800
Pressure Drop at Max CFM 125pa /.0.5"wg


Package includes
1x Vortex Pro-Lite Filter 8" x 40" Carbon Filter/1x Vortex Pro-Lite Filter 8" x 24" Carbon Filter
1x Vortex VBC800 729 CFM 8" Inline Fan
