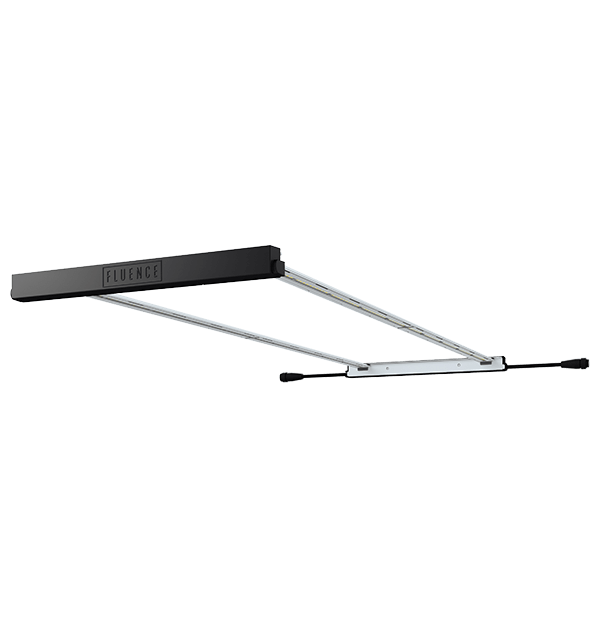

The RAZR2 Array is ideal for tissue culture, seedlings and cutting/cloning propagation as well as ornamental plugs and starter pots with an average PPFD up to 160 µmol/m2/s over a 2-foot by 4-foot area with a 12-inch mounting height above canopy. The RAZR2 Array includes 10 lighting modules, and covers 80 square-feet of canopy.

Each RAZR lighting system is designed and built in Austin, Texas, USA with an anodized, extruded aluminum alloy chassis and integrated passive heatsink for natural convective thermal management (zero moving parts), and is ETL wet location rated to withstand the harshest of growing environments.

RAZR2 is optimized to provide an average of 125-160* µmol/m2/s over a 2’x4’ (61×122 cm) area in racks, shelves, carts and rolling tables with at least 12” (305 mm) of clearance from fixture to canopy. RAZR2 is ideal for tissue cultures, seedlings, and cutting/cloning propagation as well as ornamental plugs and starter pots.

RAZR2 is a complete array of 10 fixtures and covers 80 ft2 (7.4 m2) of canopy per array.

  • Fixture PPF: 140 µmol/s
  • Fixture AC Wattage: 63W
  • Fixture Mounting Height: ≥ 12” (30.5cm) From Canopy
  • Array | # of Fixtures: 10 (minimum 3)
  • Array | PPF: 1400 µmol/s
  • Array | Input Power @277V AC: 632W (minimum 180W)
Part Length Width Height Weight
Light Fixture 47.5”
1207 mm
15.7”
399 mm
1.4”
36 mm
2lbs 12oz
1.25 kg
PSE Power Supply 21.1”
561 mm
6.3”
160 mm
3.4”
86 mm
