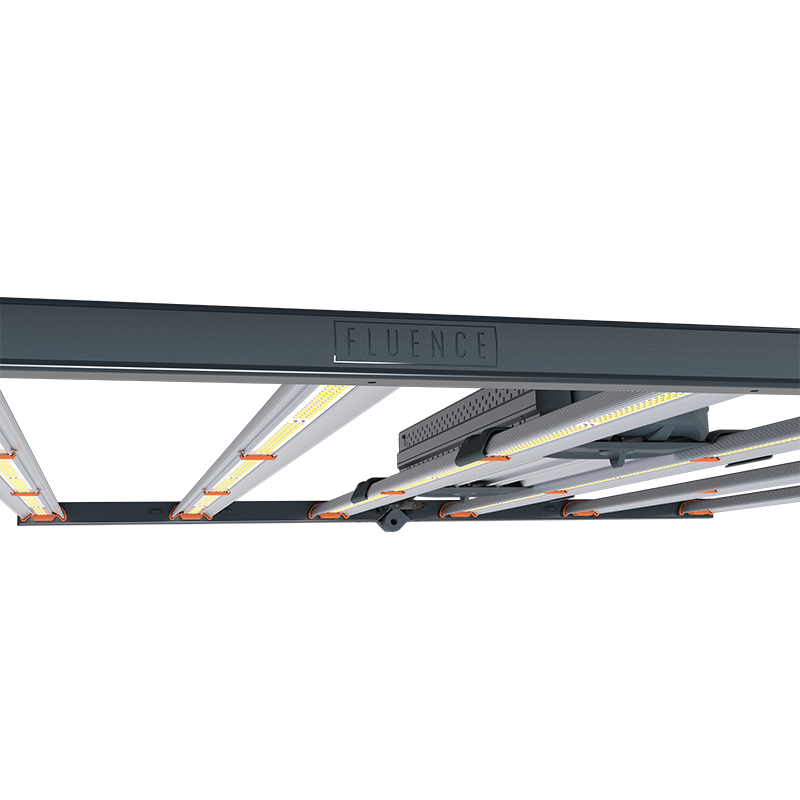

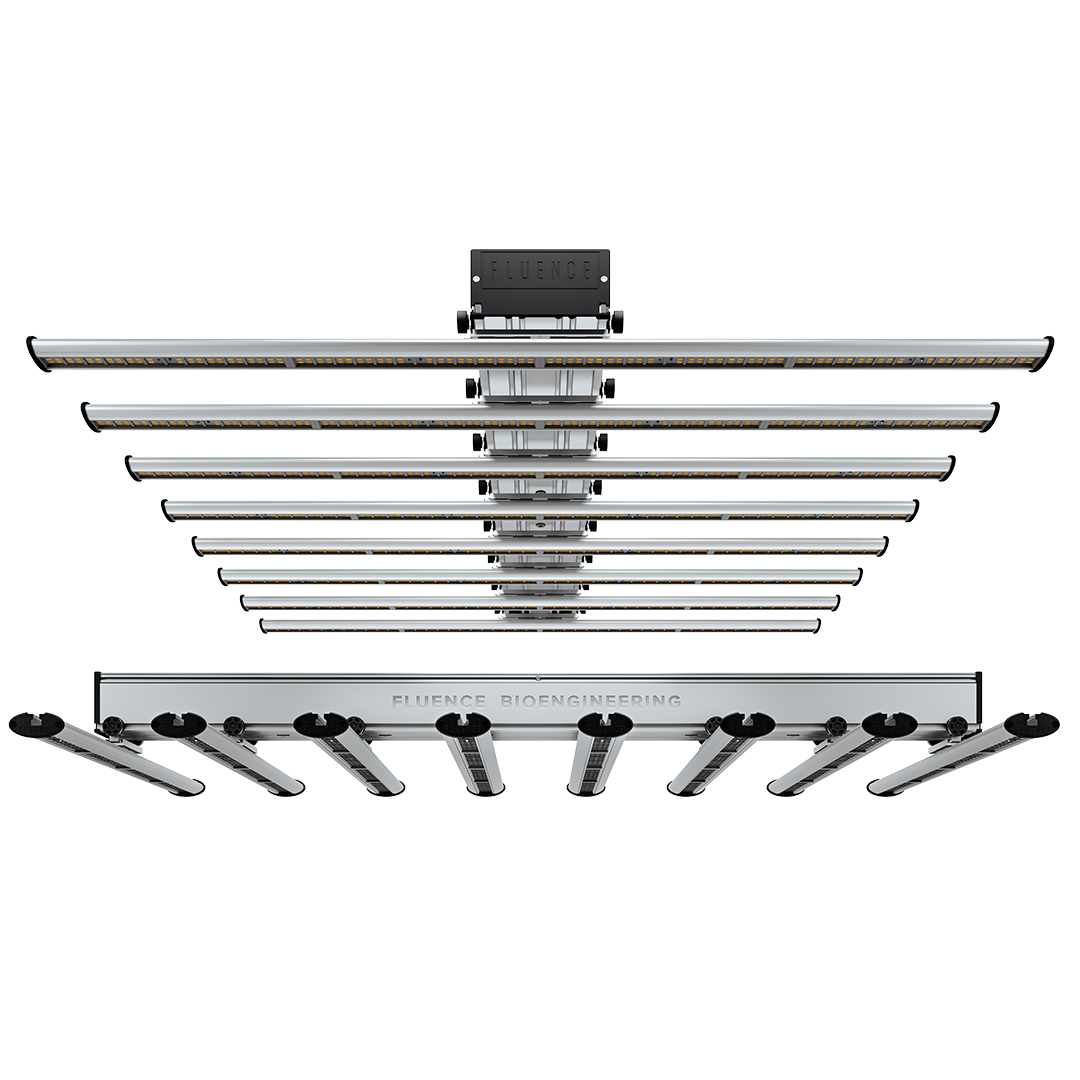

SPYDRx PLUS 685W LED delivers high average PPFD above 900, high efficiency, low profile, for 1425 umols/s or 2.08 umol/j is designed for close-proximity, controlled environment agriculture, and multi-tier vertical farming environments. Full Spectrum PhysioSpec Indoor for optimal photosynthetic targeting. Quantity pricing below is based on the standard model with 120V NEMA 5-15P, 6Ft cord, Gripple Y-Fit Hanger.
All Fluence Lights are built to order- 2 to 4 week lead time.

Fluence SPYDRx PLUS is designed for close-proximity, controlled environment agriculture and multi-tier vertical farming environments. An average – not max – PPFD above 900 makes SPYDRx PLUS the perfect choice for high-DLI crops from veg to bloom when paired with a PWM controller for early-stage development.

Designed and built in Austin, TX. Anodized, extruded aluminum alloy chassis with integrated heatsink for longevity and passive, natural convection thermal management (no fans or moving components).

PhysioSpec Indoor Spectrum

Fluence SpyderX Plus Spectrum IndoorChart

Fluence's spectra wavelengths are tailored for particular photomorphogenic responses, photoperiodic signals, chlorophyll A and B absorption, xanthophyll carotenoid pigments, and anthocyanin accumulation in plant tissue – along with unknown photoreceptors – to name a few.

To create the most advanced spectrum for complete physiological plant growth, Fluence had to challenge every assumption. Not only did this make the spectra better, it made it beautiful. Previously, 700nm (red) and 400nm (blue) were the most efficient LED packages, and coincided with peak Cholorophyll A and Cholorophyll B absorption areas. This led to a negligence of key photoreceptors and pigments outside this range.

Fluence PhysioSpec Indoor is a full-cycle spectrum optimized for rapid growth and complete plant development. Tailored for growing plants from initiation to senescence (germination, clones/cuttings, mothers, vegetative and flowering applications) in indoor environments. With a CRI rating of 85, Fluence PhysioSpec Indoor offers a beautiful work and research environment with vivid colors and greater contrast to study the health of your crop.

Electrical

Amperage depends on fixture wattage (685W for SPYDRx PLUS) and input voltage. Below is a general estimate. Actual figures may vary.

  • Amps @ 120V: 5.7A
  • Amps @ 208V: 3.3A
  • Amps @ 240V: 2.9A
  • Amps @ 277V: 2.5A

  • Usage

    Recommended mounting height 6 inches from top of canopy for optimal light uniformity, penetration and flux density above a 4ftx4ft canopy.

    Suitable for operation in still air ambient temperatures from -40°C (-40°F) to 35°C (95°F) when suspended and up to 30°C (86°F) when surface mounted. Operating temperature ranges between 25°C (77°F) to 30°C (86°F) above ambient.

    Fluence Bioengineer recommend at least one ft3/S of airflow to ensure efficient cooling. Proper air flow will also increase the maximum suitable operating temperature and help extend lifetime of system.

    Specifications

    Weight: 23 lbs
    Dimensions: 44 x 42 x 4.6 in
    Spectrum: PhysioSpec Indoor™
    Input Voltage : 120V – 277V
    Cord Length: 6' (standard), 15' (optional)
    AC Plug Type: NEMA 5-15P (standard), NEMA 6-15P (optional), NEMA L7-15P (optional)
    Mounting Hardware: Gripple Y-Fit Hanger (standard), Gripple Hanger Kit (optional)

    Plug Types Optional Mounting Hardware
