Plug type

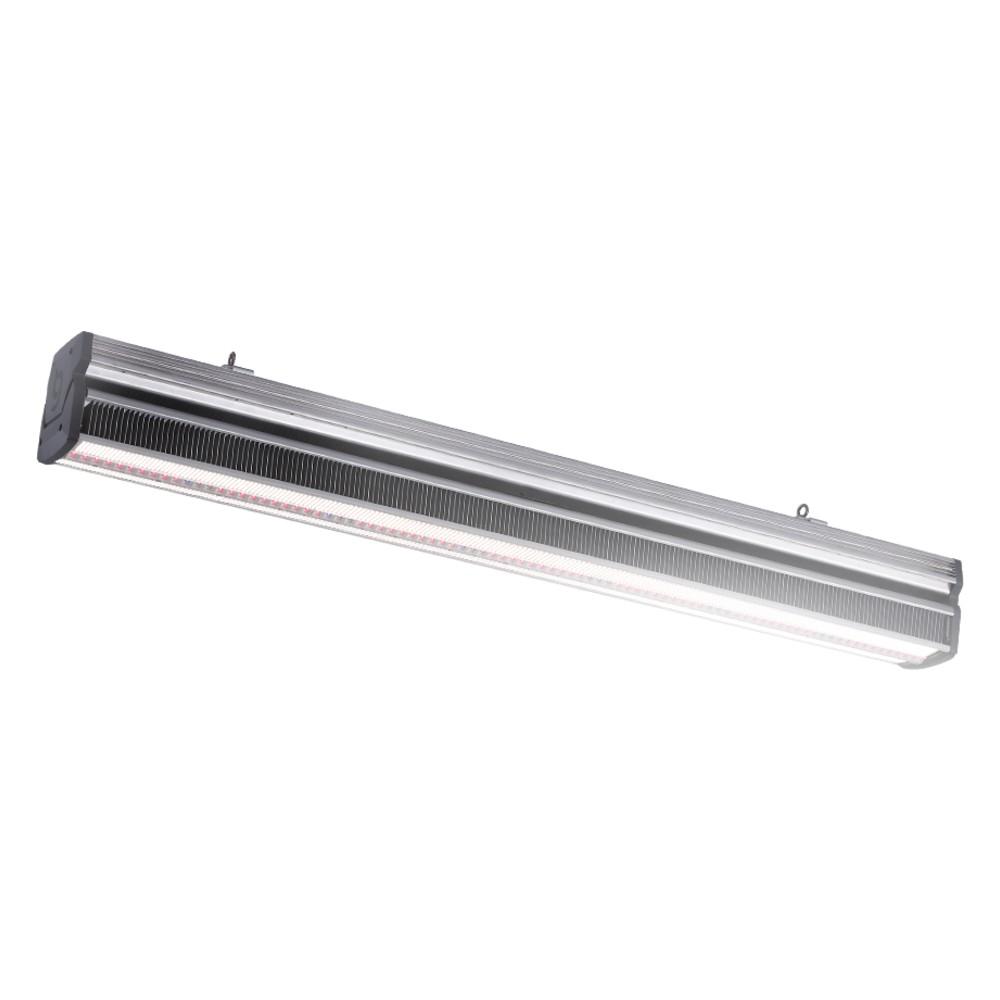

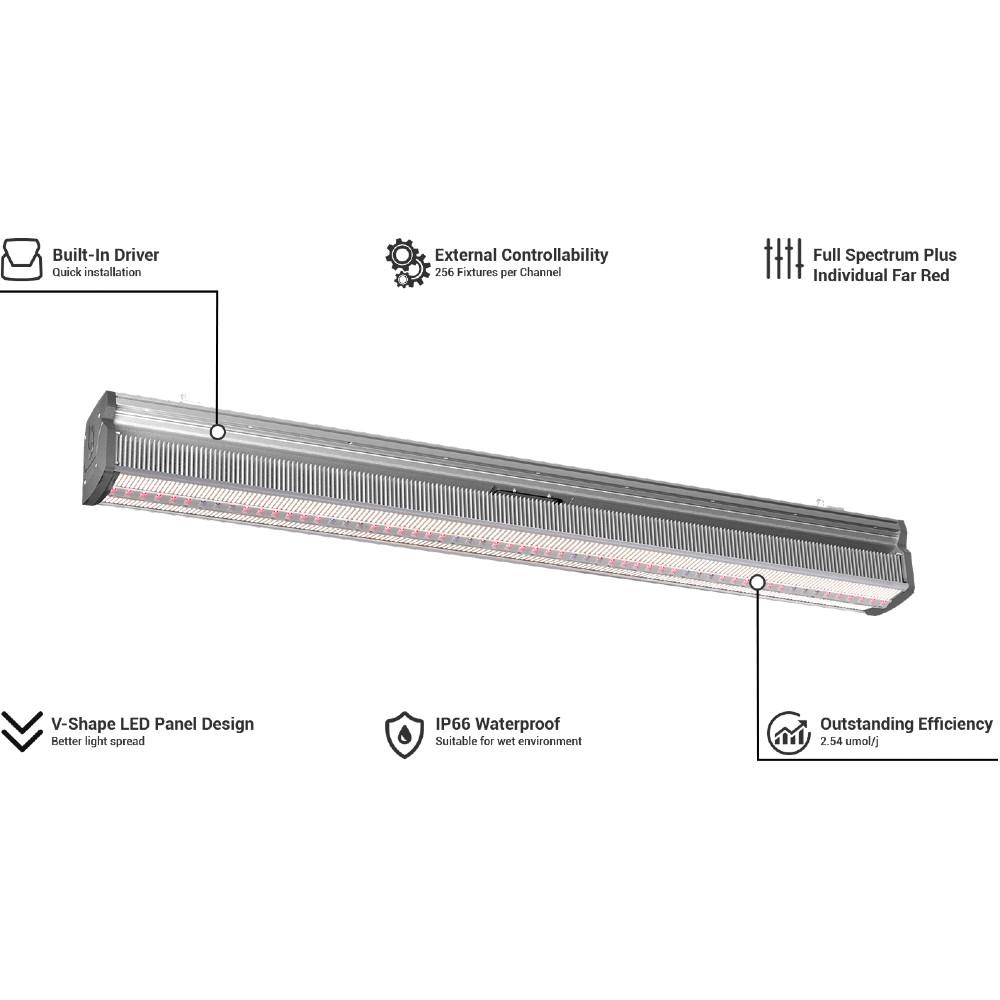

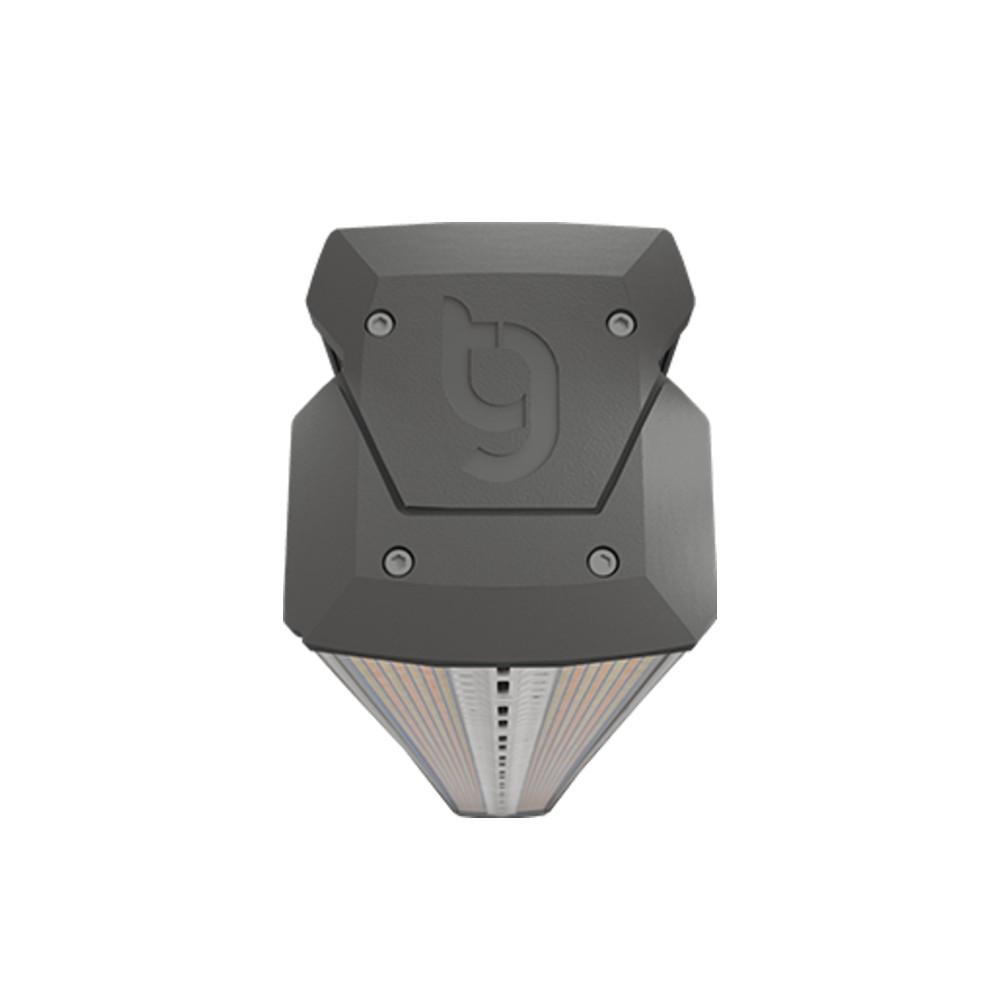

Model-I is designed specifically for greenhouse and single level indoor cultivation. This fixture is a high performance LED grow light for horticulture cultivation. The compact design with a built-in driver balances the energy efficiency and human work environment. The innovative V-shape design on the LED panel improves light distribution, which lowers the height from the canopy needed as it reduces light energy loss. Full spectrum design with UV provides a better spectrum similar to the natural sunlight covering each critical phase of growth from vegetative to flowering. Extra Far Red spectrum channel allows a 10-15 mins exposure under Far Red, it can be applied to crops to help finish the flowering cycle faster (External Controller required). It provides great external control ability and allows up to 256 fixtures per channel with outstanding efficiency at 2.54 umol/J.

The Model-I is only compatible with TrolMaster Hydro-X control systems. With the TrolMaster lighting adaptor LMA-T, the Full Spectrum and Far Red channels can be controlled independently from the Hydro-X controllers. This will allow the Far Red channel to be turned on 10-15 mins after light off to help finishing the flowering cycle faster. One LMA-T adaptor can run up to 256 fixtures in the same daisy chain channel.


Full Spectrum with UV Design

Full spectrum with UV covers each critical phase of growth from vegetative to flowering. Delivering far-red light to the crop at certain times allows growers to manipulate plant responses, flower faster, and boost yield.

Full Spectrum

Individual Far Red Channel



Comparison Chart


Input Power: 720W

Power Factor: >90%

Input Voltage: Autosensing 100-277V

Amp Draw:

  • 120V- 6.23A
  • 240V- 3.097A
  • 277V- 2.71A

PPF: 1829 umol/s

Efficacy: 2.54 umol/J

BTU: 2456.74 BTU/h

Lifetime: L90: >54,000 hours

Far Red Channel: Yes

Adjustable Spectrum: Yes

Dimmable: Yes

Coverage area: Up to 5'x5'

Mounting Height: >30" above canopy

External Controllability: 256 fixture/channel

Group Control: Yes

Certification: IP66 waterproof

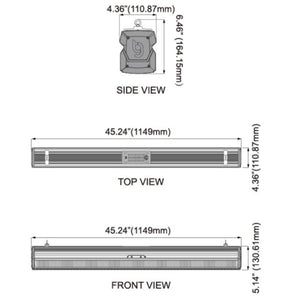

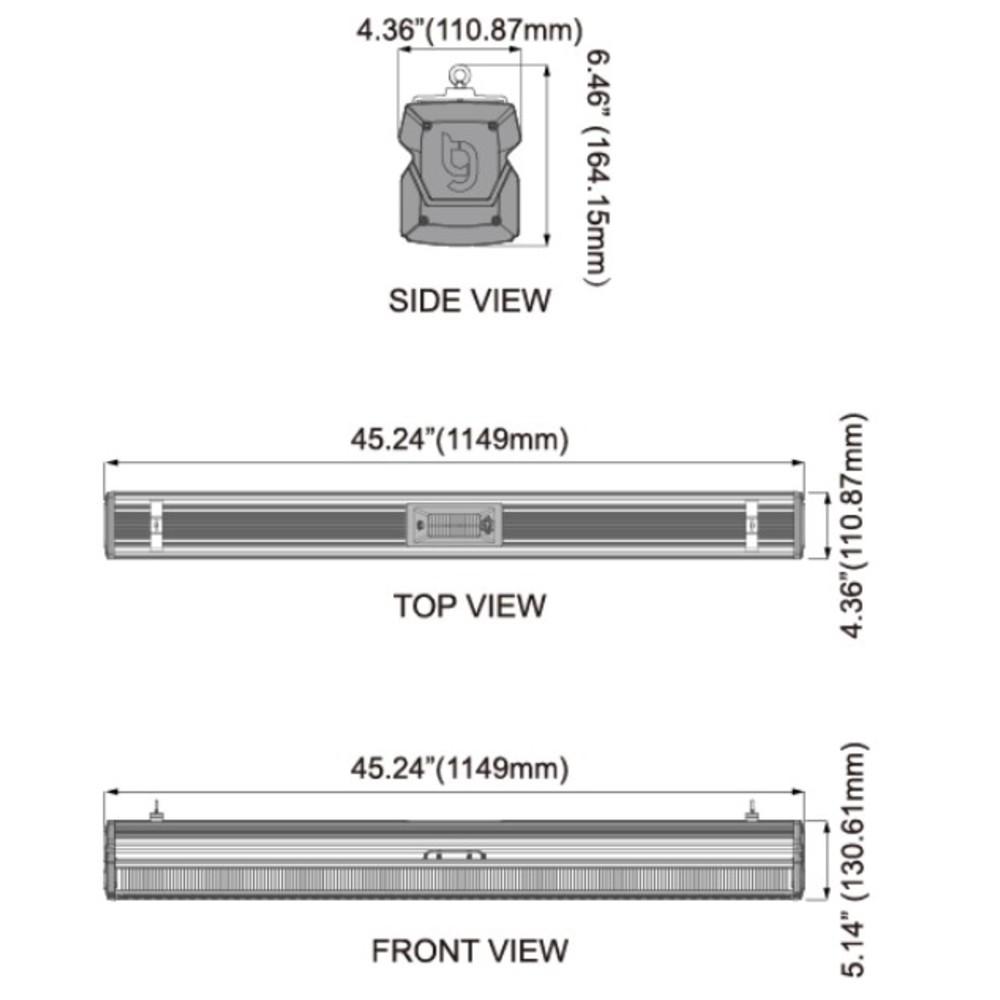

Dimensions: 45.24″L 4.36″W 6.46″H

Weight: 22.33 lbs

Warranty: 5 years standard warranty

Recommended For: Grow Room, Grow Tent, Greenhouse, Single Level Indoor Cultivation
