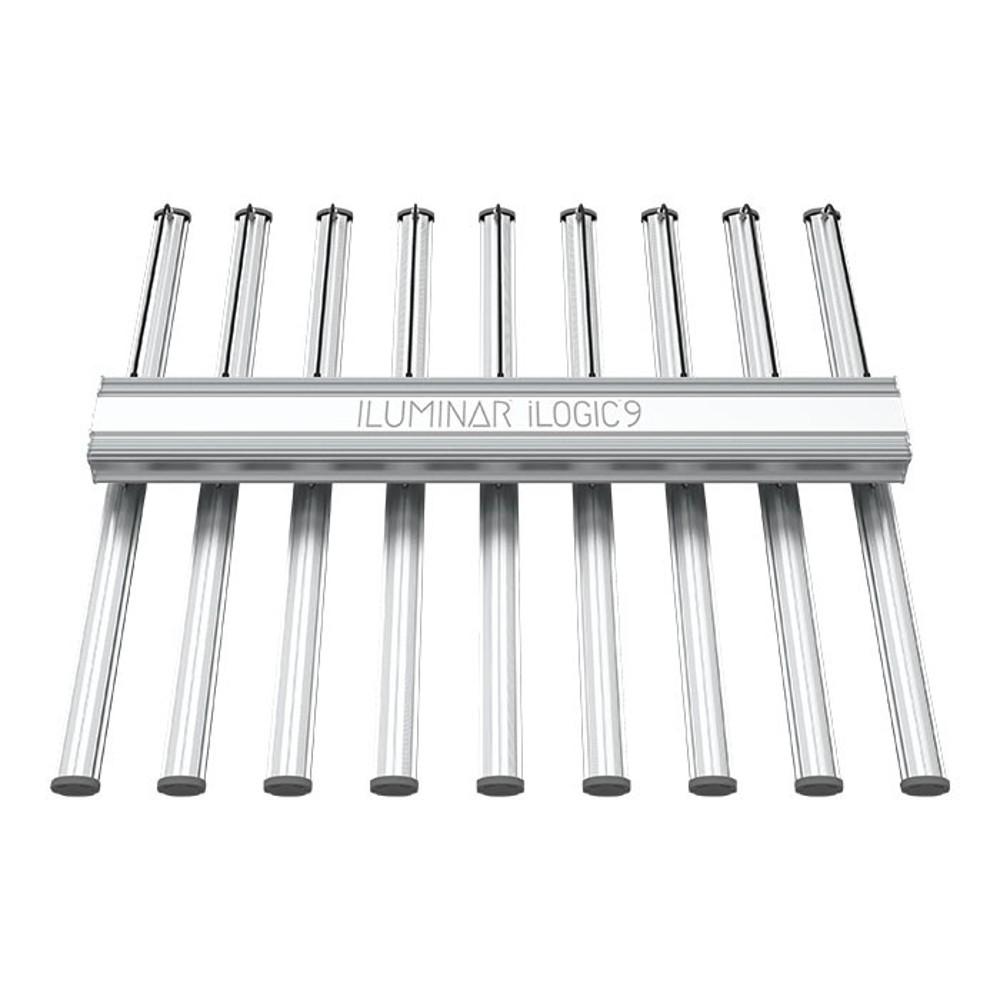

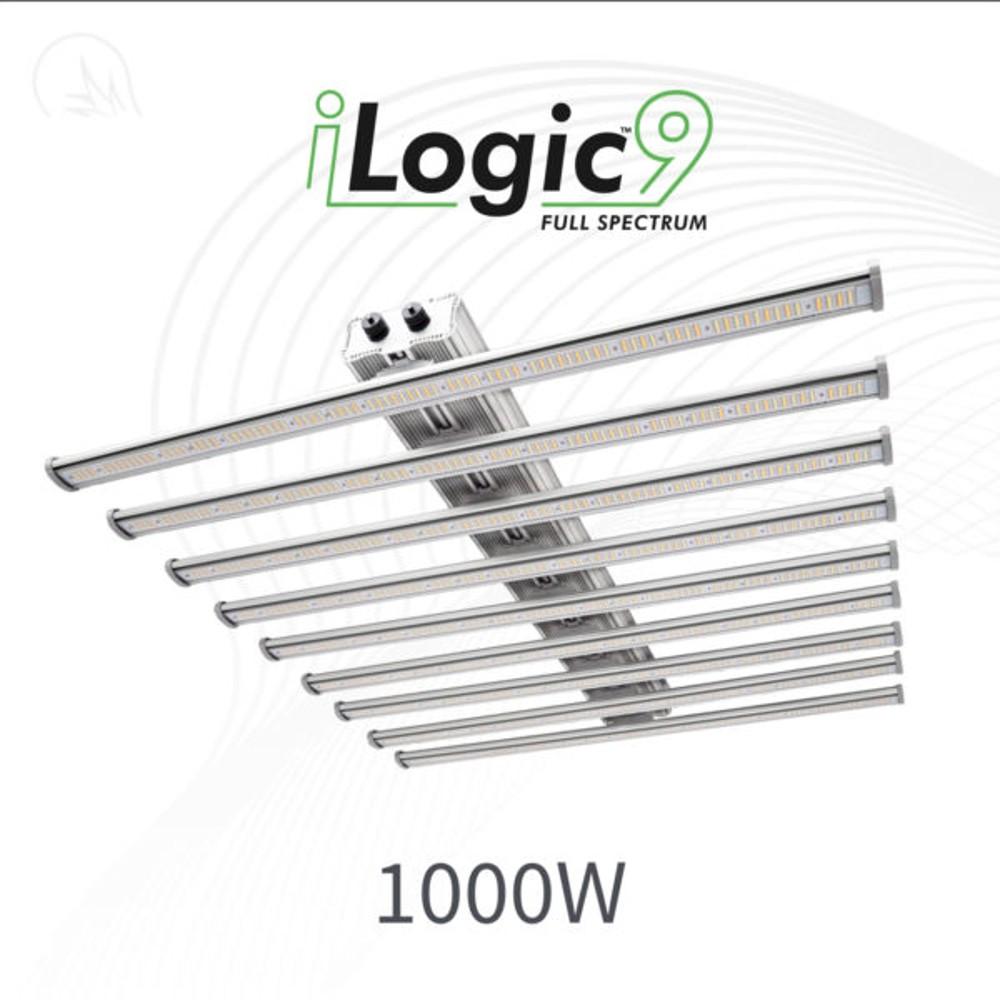

The iLogic™9 1000W Full Spectrum LED is the go-to high-efficiency lighting fixture for sealed grow rooms enhanced with CO2 supplementation. Nine light bars deliver extremely high light intensity and uniformity across a 4’ x 4’ footprint to drive unbeatable growth rates and flower production.

Delivering an incredible 2800 μmol/s PPF, the iLogic™9 Full Spectrum fixture has the power to penetrate more deeply into the densest indoor plantations, giving lower growth tips the intensity they need to reach the canopy, resulting in more viable flower sites per plant. Cultivators enjoy bigger yields, higher quality, and more overall crop homogeneity.

The enhanced canopy penetration frees growers from the chore of remedial foliage stripping in order to promote the development of lower and mid-tier flower sites.

Features

  • PPF: 2800 µmol/s
  • Efficacy: 2.8 µmol/J
  • Input Power: 1000W
  • Release clip to “hot swap” bars
  • Lightweight Aluminum Alloy Casing (23.8 kg / 52.5 lbs)
  • Additional fins to quickly dissipate heat
  • 4 Points for hanging for a level mount
  • Smooth LED Diode Surface for Easy Cleaning
  • Save $$ On Cabling
  • RJ14 Controller Connections
  • High-end OSRAM & Samsung Diodes
  • 5 yr warranty
  • DLC, ETC, FCC, CE Listed
  • Cables and Fixture IP66 rated for wet conditions

Specs

PPF: 2800 µmol/s

Efficacy: 2.8 µmol/J

Input Power: 1000W

Amps: 9.3 Amps @ 120 Volts, 5.15 Amps @ 208 Volts, 4.43 Amps @ 240 Volts, 3.8 Amps @ 277 Volts

Emitter Type: High-end OSRAM & Samsung Diodes

Color Temp: 3,300

Spectrum Tuned: FS Grow (Full Spectrum Growth)

Input Power: Smart Sensing™ 120V to 277V & 347 to 480V

Mounting Height: 8”-12” to top of Canopy

Coverage Area:
    • Veg: 6' x 6' - 7' x 7'
  • Flower: 4' x 4' - 5' x 5'
Emitter Cooling: Passive / Extruded Case

Dimming: 0-10V Controllable

Light Distribution +/- 5%: 125º

Waterproof Rating: IP66 for Damp/Wet Conditions

LED Lifespan (90% of Life): 55,000+ Hours

Power Factor: > 90%

Dimensions: 41.9" × 39.4" × 4.9 in"

Weight: 52.5 lbs
    Certifications: ETL, FCC, UL8800, CE certification

    Warranty: 5 Year Manf.
