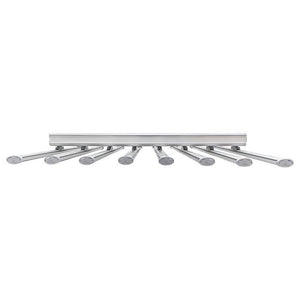

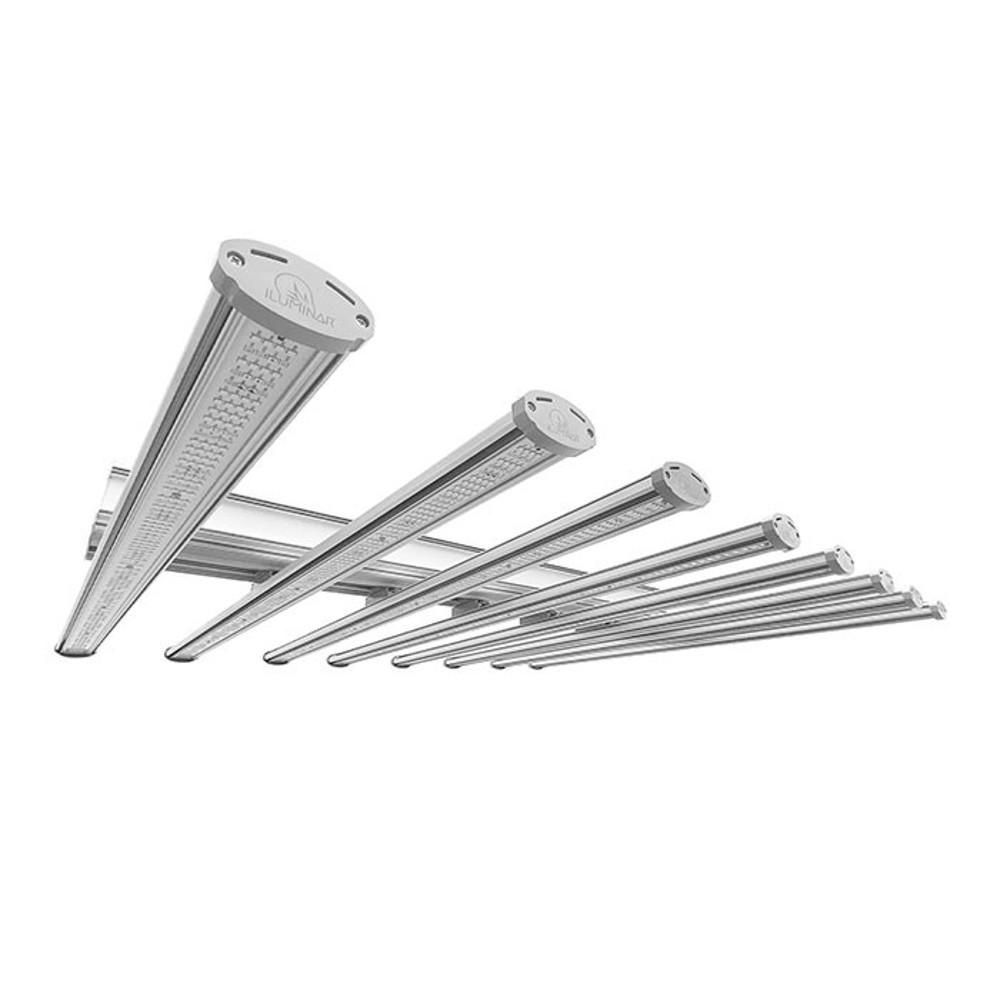

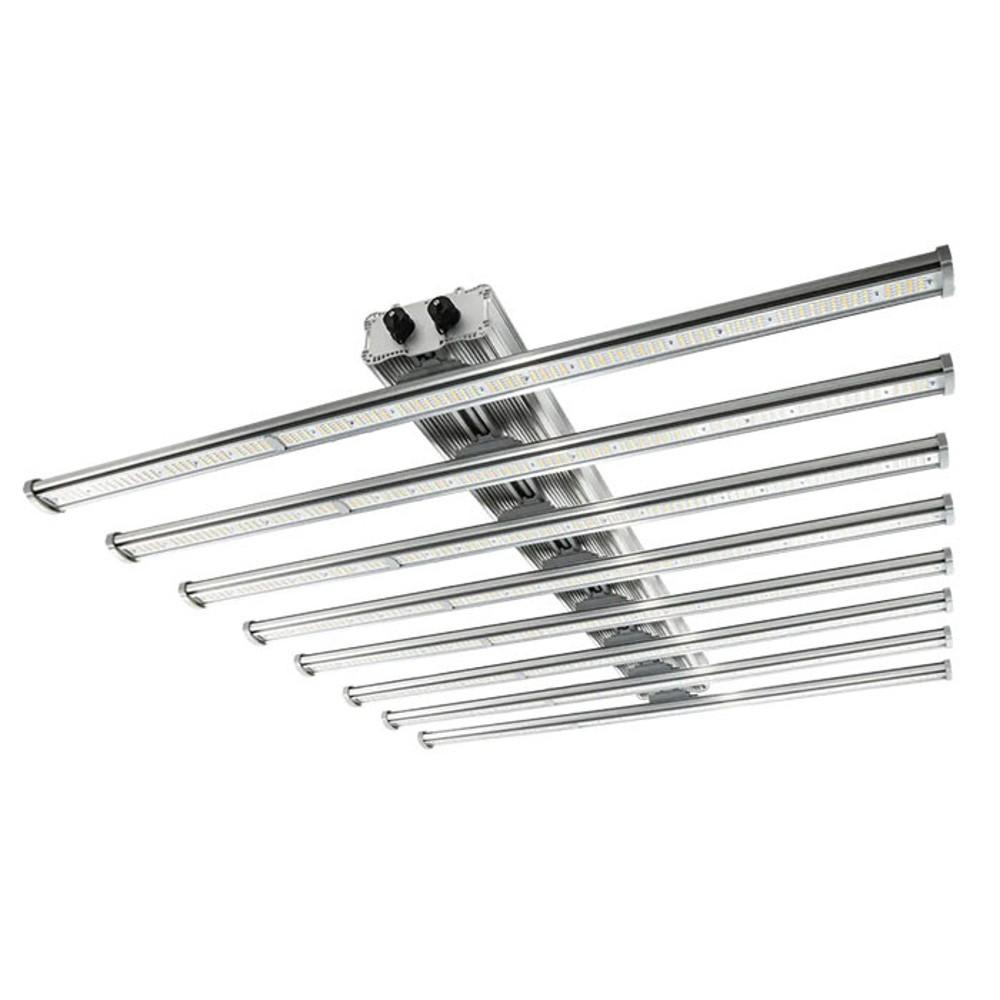

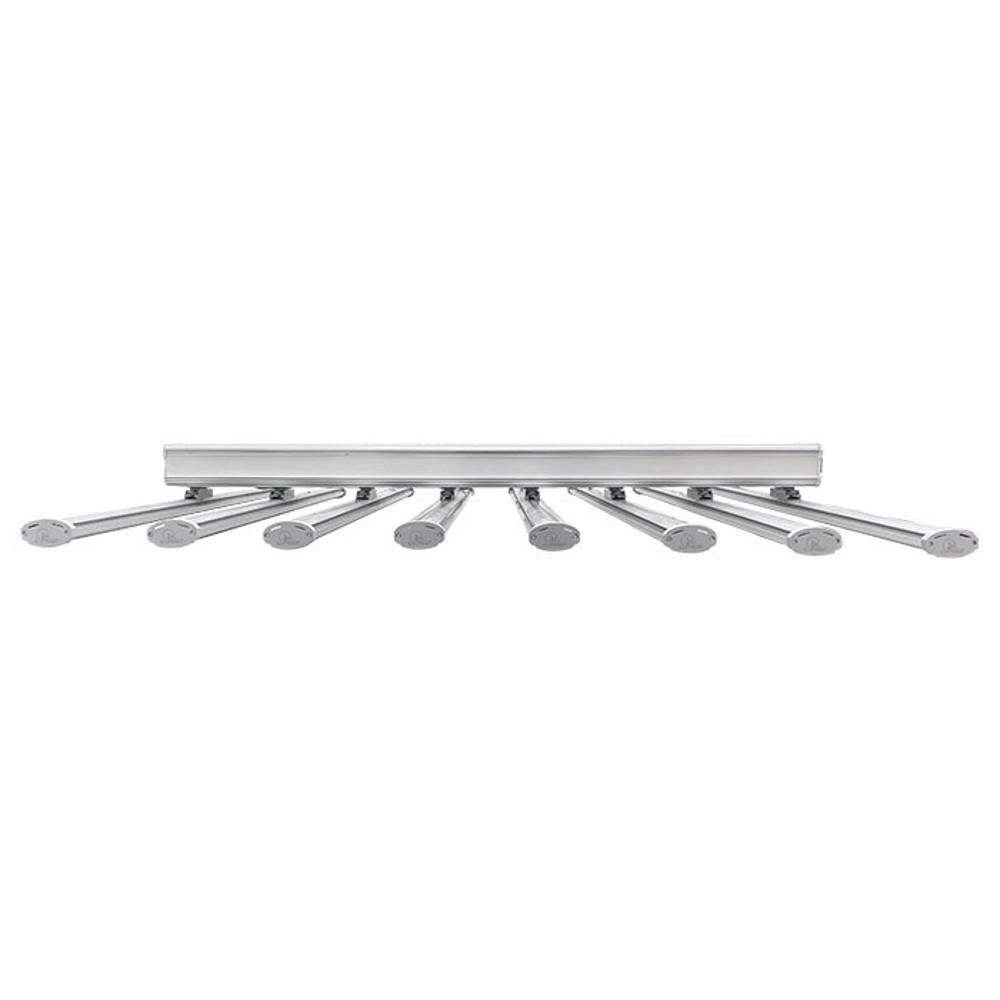

The iLogic™8 630W LED has a full spectrum array, specifically engineered for vegetative and flower cycles that require high μmol performance at a lower clearance to the canopy. Use with the ILUMINAR Touch+ controller or ILUMINAR HASH controller.

The 630W iLogic™8 LED is designed to outperform the competition with additional diodes and a tuned spectrum to deliver iconic results.

The iLogic™8 LEDs drive maximum plant productivity, even in the densest of canopies in CO2 enriched flowering rooms. Equally, at home in single or multi-tier cultivation environments, this state-of-the-art LED grow lighting promotes compact and vigorous growth and the production of high levels of secondary metabolites through the full spectrum output.

The new iLogic™8 has actual heating fins that help dissipate the heat. As for hanging and anything like that, each has two swivel points on either side so that you can have it properly sitting level.


  • Spectrum Tuned: Full Spectrum Growth
  • High-Efficiency SMD LED Array
  • Low Profile
  • ETL  / UL 8800 / FCC / CE Listed
  • 5-Year Warranty


ePAR: 1700 µmol/s

ePAR Efficacy: 2.7 µmol/J

Input Power: 630W

Amps: 5.7 Amps @ 120 Volts, 3.2 Amps @ 208 Volts, 2.8 Amps @ 240 Volts, 2.4 Amps @ 277 Volts

Emitter Type: High-end OSRAM & Samsung Diodes

Color Temp: 3,900k

Spectrum Tuned: Full Spectrum

Input Power: 120V to 277V

Mounting Height: 8”-12” to top of Canopy

Coverage Area:

  • Veg: 6' x 6'
  • Flower: 4' x 4' - 5' x 5'

Emitter Cooling: Passive / Extruded Case

Dimming: 0-10V with Controller

Light Distribution +/- 5%: 120º

Waterproof Rating: IP66 for Damp/Wet Conditions

LED Lifespan (90% of Life): 50,000+ Hours

Power Factor: 0.95

BTU: 1200

Dimensions: 41.9" × 39.4" × 4.9 in"

Weight: 52.5 lbs

    Certifications: ETL  / DLC / FCC / CE Listed

    Warranty: 5 Year Manf.
