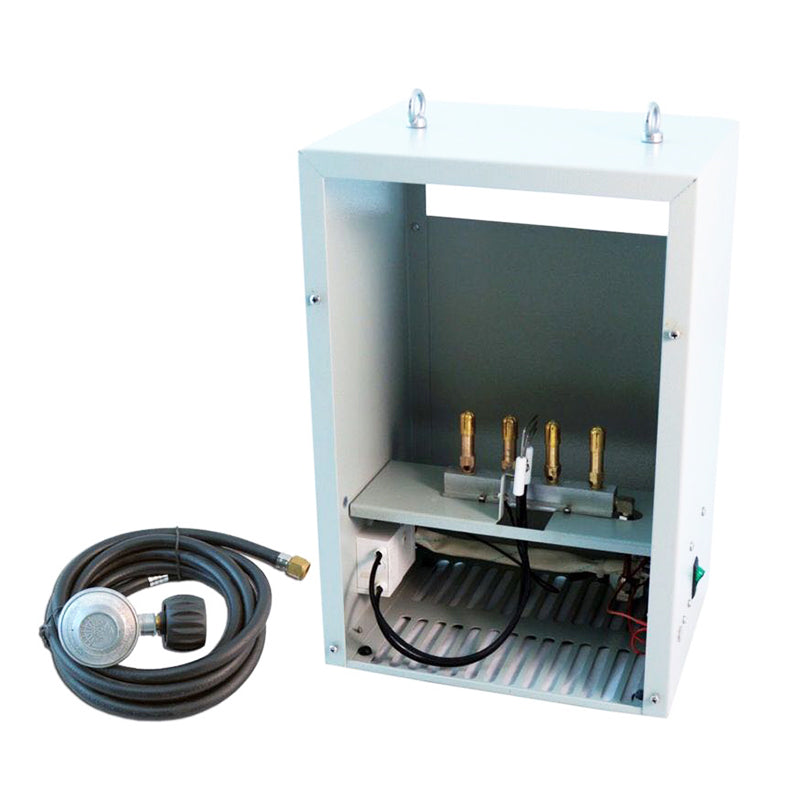

ECO FARM 4 Burners/ 8 Burners Propane Carbon Dioxide CO2 Generator

Safest and most reliable CO2 generators on the market.

The easiest way to accelerate plant growth. Carbon dioxide is one of the essential ingredients in green plant growth. The CO2Generator provides the carbon dioxide to meet maximum growing potential, and operates for only pennies a day.

CO2 generators feature powder-coated steel enclosures that resist moisture, rust and discoloration - providing years of trouble-free operation.

Our two-stage safety pilot valve does not allow fuel to flow to the burner unless the pilot is lit, and will shut down the fuel supply in the event the unit falls or tips over. The solid state electronic ignition module creates a spark to light the burners. CO2generators are available in both propane and natural gas models.

Features

Dual solenoid valves
Precision manufactured brass burners
Solid state electronic ignition module—no pilot light necessary
Tip over switch shuts off gas source if the unit falls or tips over
Shut down warning with LED error indicator light
Fabricated with all high quality components
Easy to operate

Product Description

co2 Generator

1 Hook
2 Box 2
3 power supply socket (24VAC)
4 Ignition control switch
5 Pipe Connector
6 Side Board of Box

co2 Generator

8 Burner and 8 Burners two models
Natural gas and propane two choices
Use 12VDC low watt, use safely reliable.
High CO2 yield:
16~26  cubic feet per hour
Ignition mode is automatic. And it will ignite automatically in sudden flameout situation.



Technology performance parameter
Model
8 burners
Type
Liquefied petroleum gas
Reductor input pressure
25~250 PSIG
Reductor output pressure
280mmH20=(11″ W.C.)
Redutor flux
1.5kg/hr(BTU/hr 71400)
Exhaust way
Force exhaus
Ignition way
High-pressured pulse spark
Safety Setting
Flameout protection, cut  protection
Area of greenhouse(cubic feet)
≤3200
Wastage of fuel( each burner )(kg/hr)
0.075
Yield( each burner )(cubic feet/hr)
3.47

Rated power supply
Input :100~240VAC
Output: 12VDC 1.25A
BUT(each burner)
Propane :2794
Packing size (mm)
478×273×556
Weight (kg)
10.3
