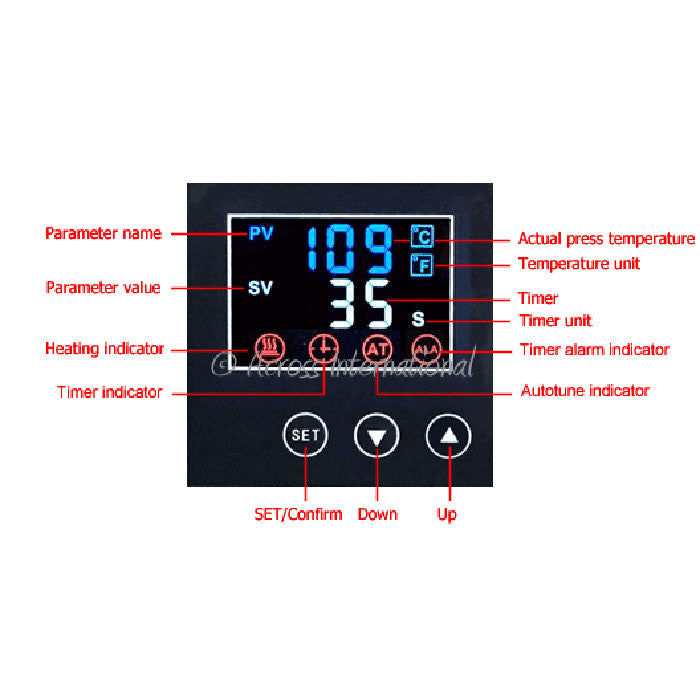

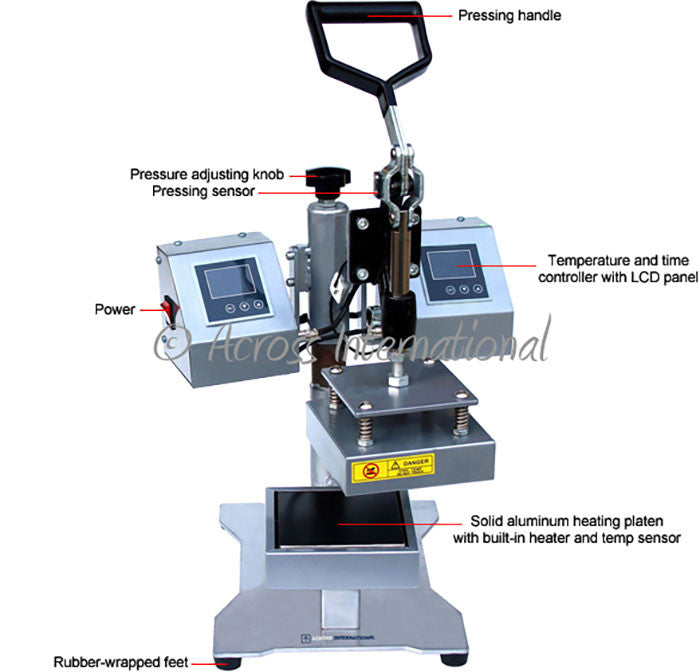

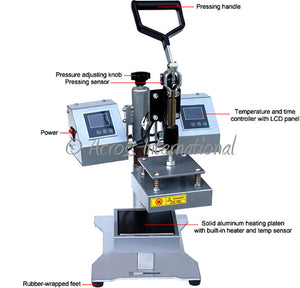

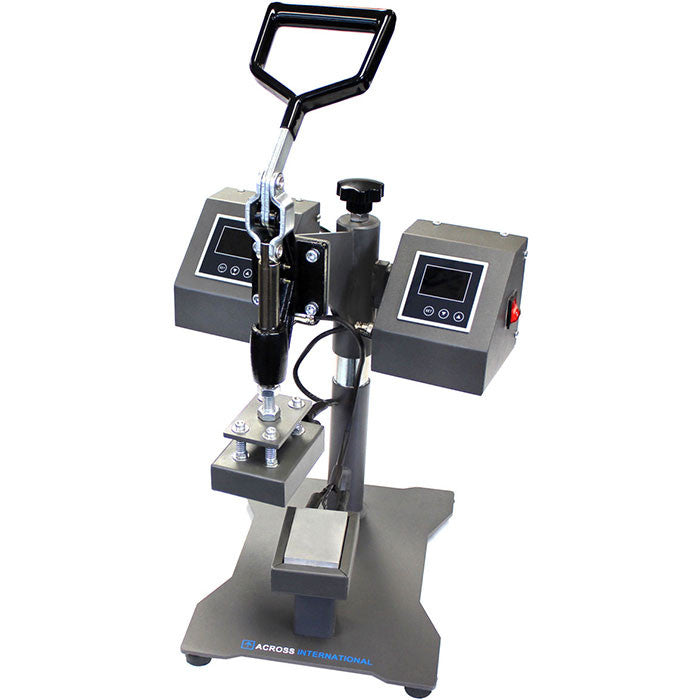

Ai HandPress 3 x 2″ swing-away heated press has a top heat platen that can easily be moved away from the lower platen. It features dual built-in digital thermometers and heaters, allowing you to precisely control the temperature of your transfer. The digital timer will automatically begin a countdown as soon as the clamp is pressed shut, and provides an audible alarm once the predetermined amount of time has elapsed. The HandPress is easy to operate, with a padded open and close handle and built-in adjustable pressure knob.

Product Specs

  • Electrical Requirements: 110V 60Hz, 220V 50/60Hz, single phase, 1100 watts
  • Heated Platen Dimensions: 3 x 2 inches
  • Number of heated platens: Two
  • Material: soild aluminum
  • Maximum Downward Pressure: 1,000 lbs or 167 psi (measured with an IEEE 1451.4 compliant, 20,000 lb pressure sensor, made and calibrated in USA)
  • Number of controller installed: Two
  • Display unit: Fahrenheit or Celsius
  • Temperature range: ambient to 480°F (250°C)
  • Timer range: 1 to 999 seconds
  • Body material: Powder coated steel
  • Safety: Press arm lock, timer alarm
  • Unit weight/shipping weight: 30 Lb / 50 Lbs
  • Unit dimensions (WxDxH): 14.5 x 13.5 x 19 inches
  • Shipping dimensions (WxDxH): 19 x 18 x 22 inches
  • Recommended heat settings for botanical extractions: Flowers: 180°F to 230°F; Concentrates: 150°F to 200°F
