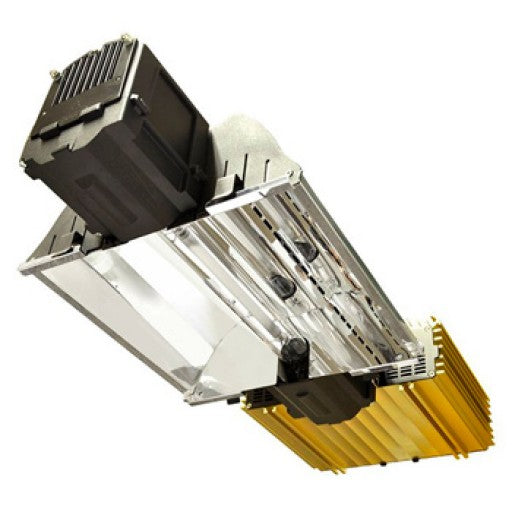

Each Dimlux Expert Lighting System consists of a cutting-edge Dimlux Xtreme Ballast, a dazzling, remarkably flexible Alpha Optics 98 Reflector and a powerful and efficient Philips Greenpower lamp – all brought together and housed in a single heavy duty unit.

DimLux Expert Series Fixtures and Xtreme Ballasts

  • The highest output (light) due to the overdrive (boost) and 400V technology
  • The broadest dimming range of all digital ballasts
  • Soft-Start, Soft-Dim, Soft-Off function
  • Can be dimmed manually in 8 levels including the “off” position.
  • Can be variably dimmed via the Maxi Controller
  • Extensive diagnostic LEDs
  • EOL function (indication to replace lamps)
  • Safety features for preventing short circuits, open contact, high temperatures, too low voltage, too high voltage
  • The loose Xtreme ballast is suitable for both 400W and 600W lamps
  • The loose Xtreme ballast is also available in an EL version for 400V lamps

Dimlux Xtreme Ballast

The Dimlux Xtreme Ballast gives you 7 separate dim options – considerably more than any other competing product – so you can precisely alter light output to match the changing demands of ever-developing plants. Two boost settings are available for generating up to 15% extra lumens than is advertised on the lamp, and the Soft Start and Soft Off features ensure you don’t get sudden surges of power when switching between “on” and “off” modes, protecting the product and upholding your safety. Utilizing superior electronic technology, the Xtreme Ballast operates very quietly and very efficiently, promising to save you money over time on you energy bills. It is reassuringly fireproof, employing a built-in processor to monitor the ballast-to-lamp connection and an LED display to inform you of the operating status, cutting the power in the event of a bad contact or short circuit.

Alpha Optics 98 Reflector

The Alpha Optics 98 Reflector has been made from mesmerizing 98% reflective Miro Silver aluminum. Crafted in a unique and effective manner, it only lets light waves hit the mirror-like surface of the interior on one occasion before projecting them downwards to cover over your plants. The light is also steered clear of any unnecessary and unwanted interactions with the lamp, minimizing overall wastage. These two aspects conform to the Single Bounce Clear Sight principle (SBCS). Both sides of the reflector can be adjusted to manipulate the distribution of light and there are optional add-on reflectors for stopping light from hitting walls instead of floor space. The open nature of the Alpha Optics 98 Reflector helps with the passive cooling of the lamp, improving its efficiency and overall life span. A 50mm port on the top of the unit actually allows you to extract the hot air away from around the lamp – a smart inclusion and standout feature.

Philips Greenpower lamp

Dimlux Expert Lighting Systems include an industry-leading Philips Greenpower lamp. Thanks to the internal voltage converter of the ballast, both the 600 Watt and 1000 Watt models are suitable for 400v lamps using a standard 230v connection. These help to ensure that you enjoy a high and stable light output.

DimLux 1000w Expert Series Complete Fixture Product Specifications

Input Voltage 230V
Dimming Steps Soft-Off, 600W, 700W, 800W, 900W, 1000W, 1100W, 1200W (Boost)
Consumption Capacity 1000W = 1050W (4.5A at 230V)
Consumption Capacity 1200W = 1260W (5.2A at 230V)
System PPF at 1200W 2470µmol
Lighting Surface at 1000W min 1.4m2 / max 3.3m2
Lighting Surface at 1200W min 1.65m2 / max 4m2

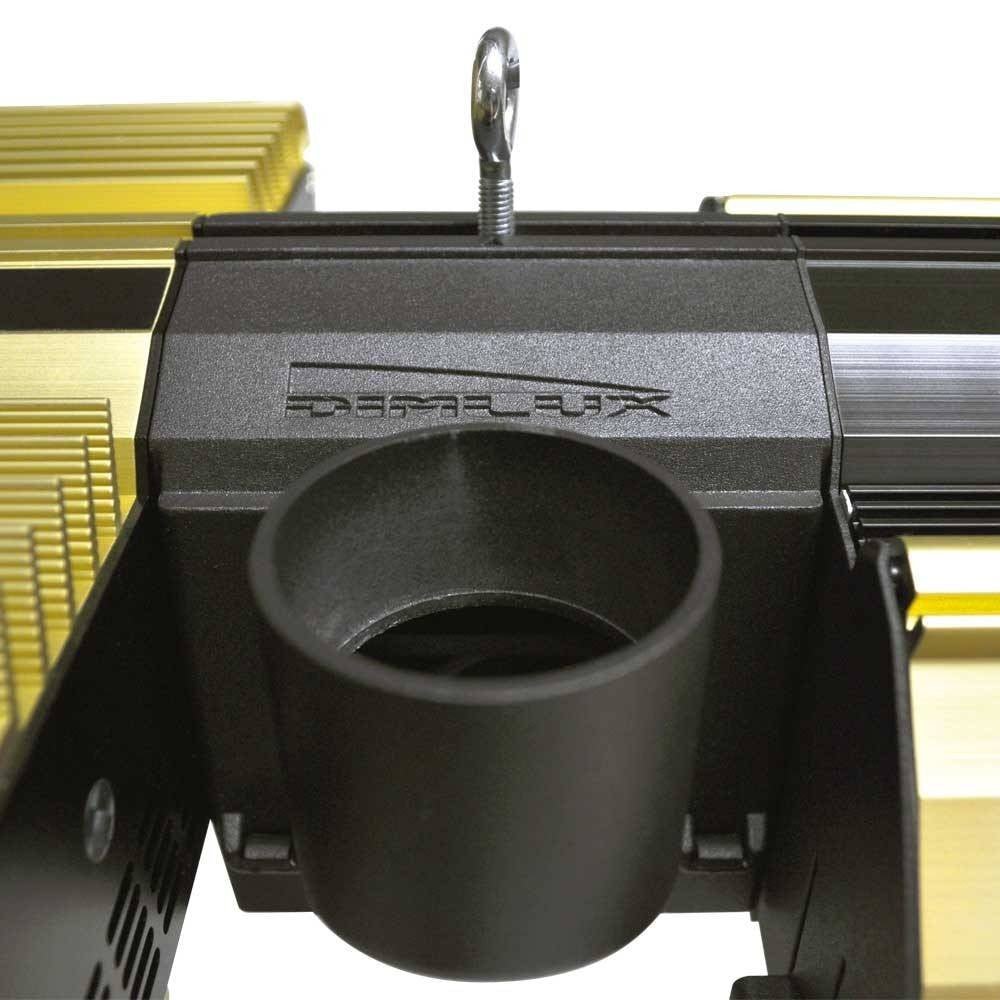

Socket for Active Extraction ø50mm (2”)
Measurements 675 x 275 x 130 mm (26.5”x10.8”x5.1”)
Weight 6.3kg (13.88lbs)
