Product Introduction:

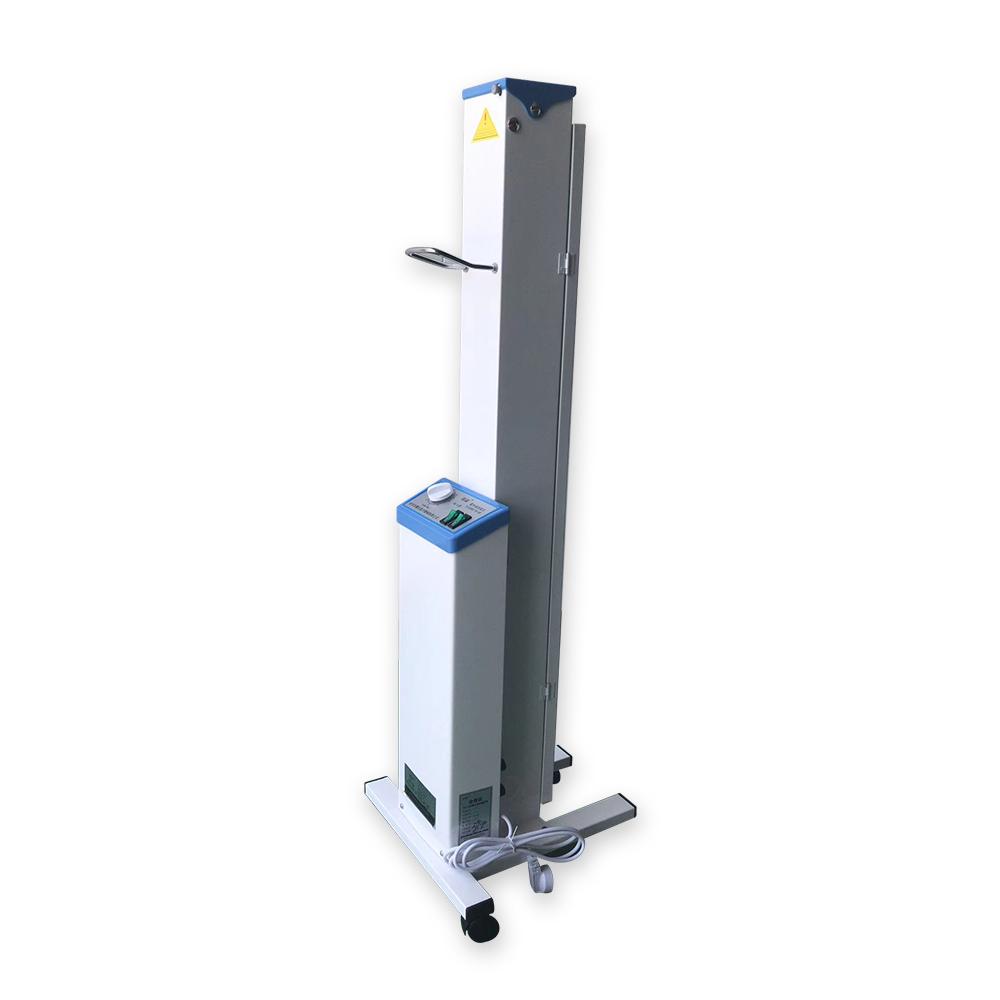

ECO Farm UV sterilizing lamp car produced by our adopts mobile gear adjustment, which is composed of a cabinet, a lamp holder and a timer. The uv sterilizing lamp tube is installed, and the digital ballast is used to light up, start quickly and without noise, which is used for disinfection of air and articles in medical treatment and other office and living places.

Product Specification:
  • Voltage: 220V/50Hz
  • Lamp power: 2*30W
  • UV wavelength: 253.7nm
  • Total product height: 117cm
  • Package dimensions: 113cmX23cmX23cm
  • Working environment: Non-corrosive gas, flammable and explosive gas occasions

Using Method:
  • The symbol "I" on the switch means on, and the symbol "O" means off, respectively controlling two lamp tube switches.
  • ECO Farm timer has the function of regular opening and timing, which can be set arbitrarily within 20 minutes and 120 minutes. The timer will automatically cut off the power after the work is completed. It is strictly prohibited to use the timer in the opposite direction.
  • Keep the surface of the germicidal lamp tube clean. Ultraviolet rays have the ability to kill cells. Human eyes and skin should be avoided from being exposed to ultraviolet rays for a long time. Therefore, people should leave the room or wear protection when using.
  • To ensure safe use, the power socket must be reliably grounded. After use, turn off the switch and unplug the power cord.
  • If the fuse needs to be replaced, the power cord should be removed and replaced by a professional.
  • Packing and transportation:
  • Each UV disinfection truck is sealed against moisture with plastic bags, with instructions, and protected with pearl cotton.
  • Avoid rain and snow wet and collision during transportation
  • Installation Method:
  • The box is installed on the bottom plate. Align the three feet with universal wheels and the screw holes on the bottom plate of the box and tighten with the provided butterfly screws.
  • Open the protective door and lift the lamp arm directly to the required position. If the lamp tube is not installed, install the lamp tube on the lamp holder and rotate it by 90 degrees.
  • Plug in the power and turn on the switch. The timer can be always on or timed, and the time can be set as required.
  • Turn off the switch after use, unplug the power cord, and press the button to retract the lamp arm. Please hold the lamp arm slowly into the light box and close the protective door.
