The EYE HORTILUX LED 240-R Grow Light System is the culmination of years of research and engineering. The spectrum was tested against seven other spectrums in a plant-growing operation. OPTIMAL SETUP RECOMMENDATION* Coverage Area 3 ft. x 3ft. Height Above Canopy18 in. Distance between fixtures** 3 ft. LED 240-R Grow Light System Specifications Wattage240W Socket TypeN/A Input Voltage120V Amperage2A @ 120V 1A @ 240V Light Uniformity – max/min5.3/1 Light Uniformity – avg/min3.1/1 IP RatingIP66 Weight22 lbs.


The Hortilux 240-R LED Grow Light was researched and designed based on plant-specific grow trials comparing eight different spectrums. These field tests were conducted to verify the most effective spectrum for the vegetative stage of plant growth. The Eye Hortilux LED 240-R utilizes the spectrum that far outperformed all others.

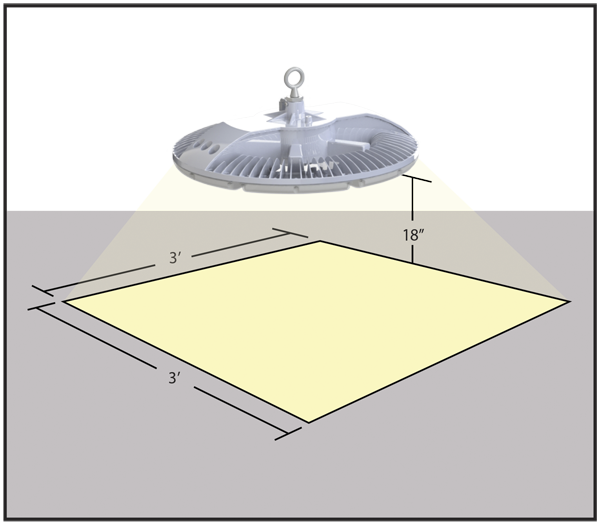

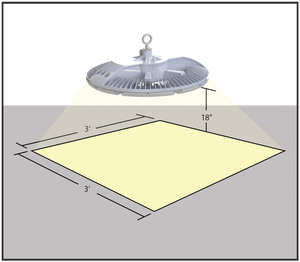

Optimal Setup Recommendation

  • Coverage area: 3ft x 3ft

  • Height above canopy: 18"

  • Distance between fixtures: 3ft


  • Wattage: 240W
  • Socket type: N/A
  • Input voltage: 120V
  • Amps: 2A @ 120V - 1A @ 240V
  • Light uniformity - max/min: 5.3/1
  • Light uniformity - avg/min: 3.1/1
  • Avg. PPFD (400-700nm): 215 umol/second/m2
  • Efficacity: 1.6 umol/Joule
  • IP rating: IP66

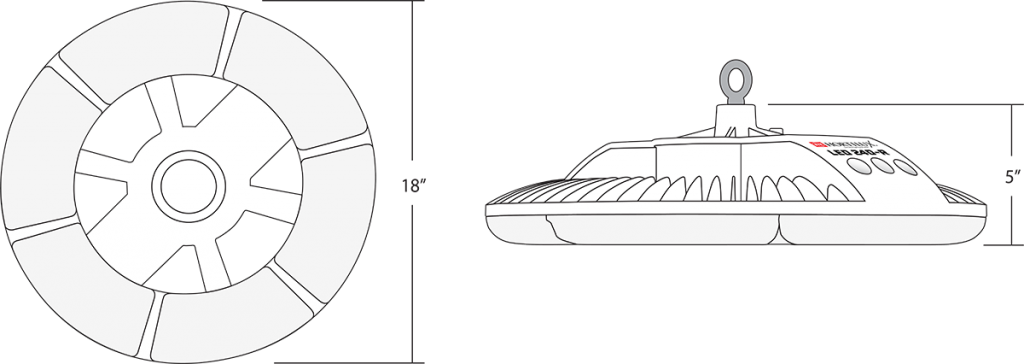

  • Dimensions: 18" x 5"
  • Weight: 14.7 lbs

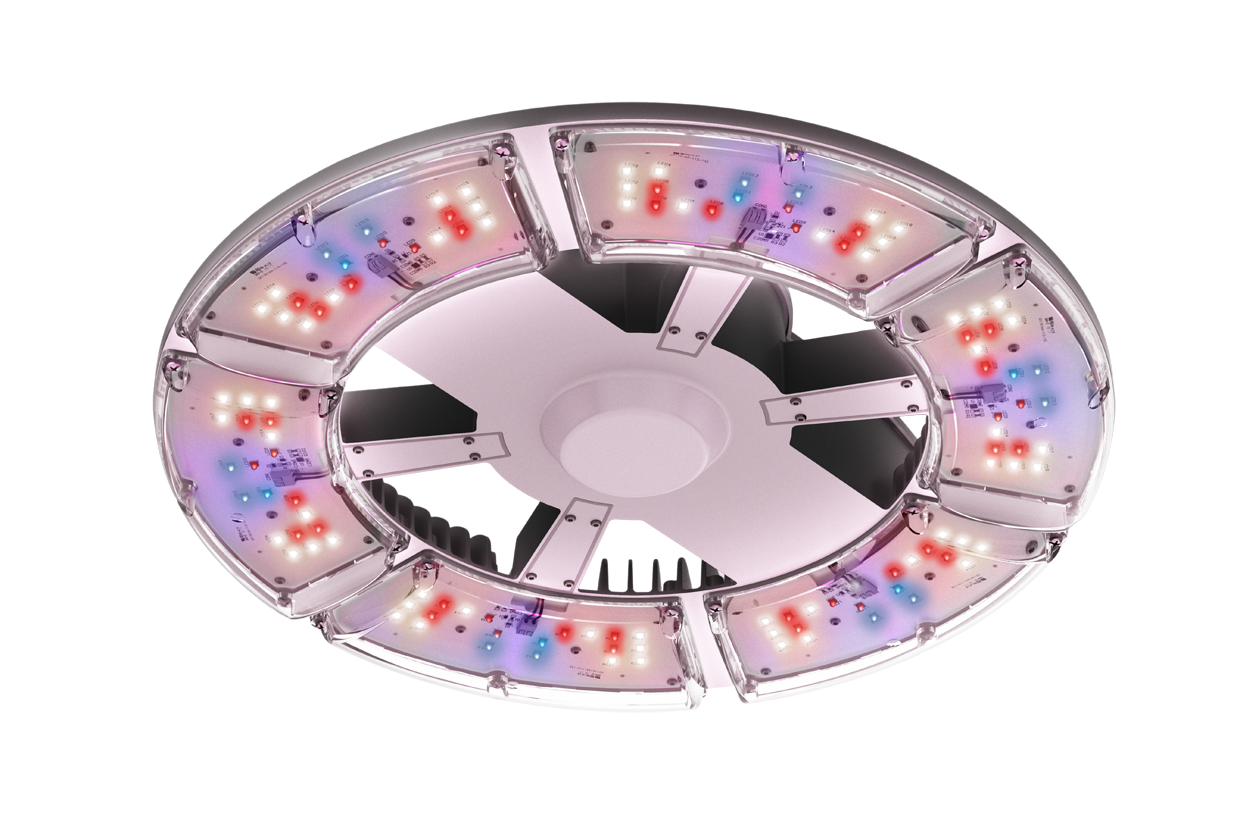

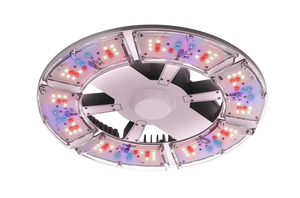

LED 240-R Chips

Four Week Grow Trial

The photos above show the plant growth over the 4-week period under the testing fixtures.

Easy plug-n-play Installation

Attach the included eyelet. Hang it from your rope ratchet or chain. Plug it in. You’re ready to grow. It’s that easy.

MSRP $624.95
Wattage 240W
Socket Type N/A
Input Voltage 120V
Amperage 2A @ 120V
1A @ 240V
Light Uniformity – max/min 5.3/1
Light Uniformity – avg/min 3.1/1
Avg. PPFD (400-700nm) 215 μmol/second/m2
Efficacy 1.6 μmol/Joule
IP Rating UL Damp
Weight 14.7 lbs.
Warranty 3-Year Limited
