Nanolux light tracks allow for modular mounting of Nanolux LED lights. Convenient markings help to ensure even spacing between lights. They can be dimmed and turned on and off through protocol systems. This 2 foot long track can supply power for up 2-4 lights.

Extra Information

Input Voltage:
Maximum Use of 4 Bars Input Amperage:
Input Frequency:
Power Factor:
Total Harmonic Distortion:
Max Wattage:
23.62" x 3.07" x 1.73"

LEDex is the first Modular Horticultural LED Light System of its kind

Nanolux LEDex Series Fixtures are designed for full-cycle commercial cultivation that features many advantages compared with traditional light sources, bringing new efficiencies for your grow facility that weren’t possible before.


This technology is revolutionizing the horticultural lighting industry in both lowering electric usage and increasing overall crop yield.

The modular design of this LED Light Fixture allows for endless combinations and customizations making it the perfect fixture for getting the spectrum just right for the needs of your operation.

LEDex Series fixtures allow random start, soft start, soft dimming capabilities, and feature over-temperature protection, under-voltage protection, and open/short circuit protection. It is 0-10V COMPATIBLE, allowing control of your lighting with a 0-10V protocol. The units can be used at any voltage range between 100-277 volts.

LEDex is Customizable with its Innovative Modular Design

Nanolux has designed its LED fixture around a modular concept. Light Tracks are sold in lengths of 2 feet, 4 feet, or 8 feet. The 2-foot track accepts 2-4 light bars, the 4-foot track accepts 4-8 light bars, and the 8-foot track accepts 8-16 light bars. This allows you to utilize only the number of light bars as needed per track to meet your overall required PPFD on your canopy. The individual LED bars can also be used individually for side or intra-canopy lighting without the track. The end-user will be able to adjust the overall light intensity over the canopy area and allows for greater ability to raise and lower the light over the canopy while maintaining a desired umol count.

The most important bar in the fixture, the Full-Spectrum White LED Bar has a PAR of 2.7 umol/J and a total PPF output of 300 umol/s. This bar covers the entire spectrum and has a light distribution angle of 120 degrees.

White LED Light Bar
White Bar Spectrum

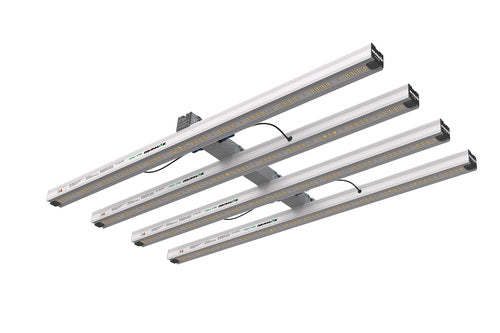

NanoLux LEDex Fixtures

Looking to start small and with a few plants? The 2-foot track can hold between 2 to 4 LED bar Lights and is the perfect fixture for hobby grower looking to grow like an expert.
