Easy to use: The powerful manual heat press has a powerful pressure that can withstand 5000-5500 pounds; just turn the crank clockwise, and the pressure can accumulate and remain there until it rotates counterclockwise after the pressing is completed. There is no noise and oil leakage.

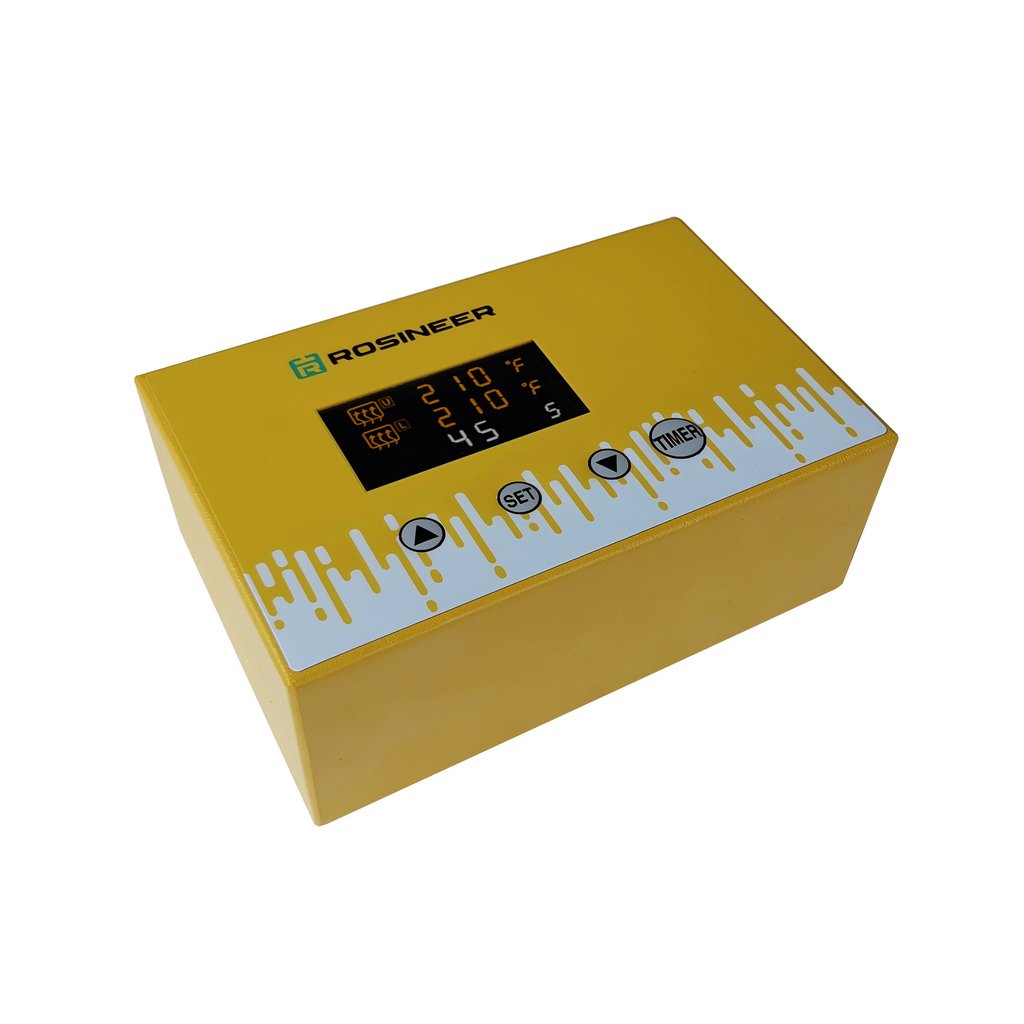

Digital control panel: The precise dual-channel temperature and timer controller is connected to the press or wherever you like via four magnetic feet, which can be easily accessed during the pressing process. No additional equipment is needed at all.
Solid heating plate: The well-aligned 7.62 cm x 12.70 cm aluminum plate is equipped with an insulating layer for uniform and rapid heating.

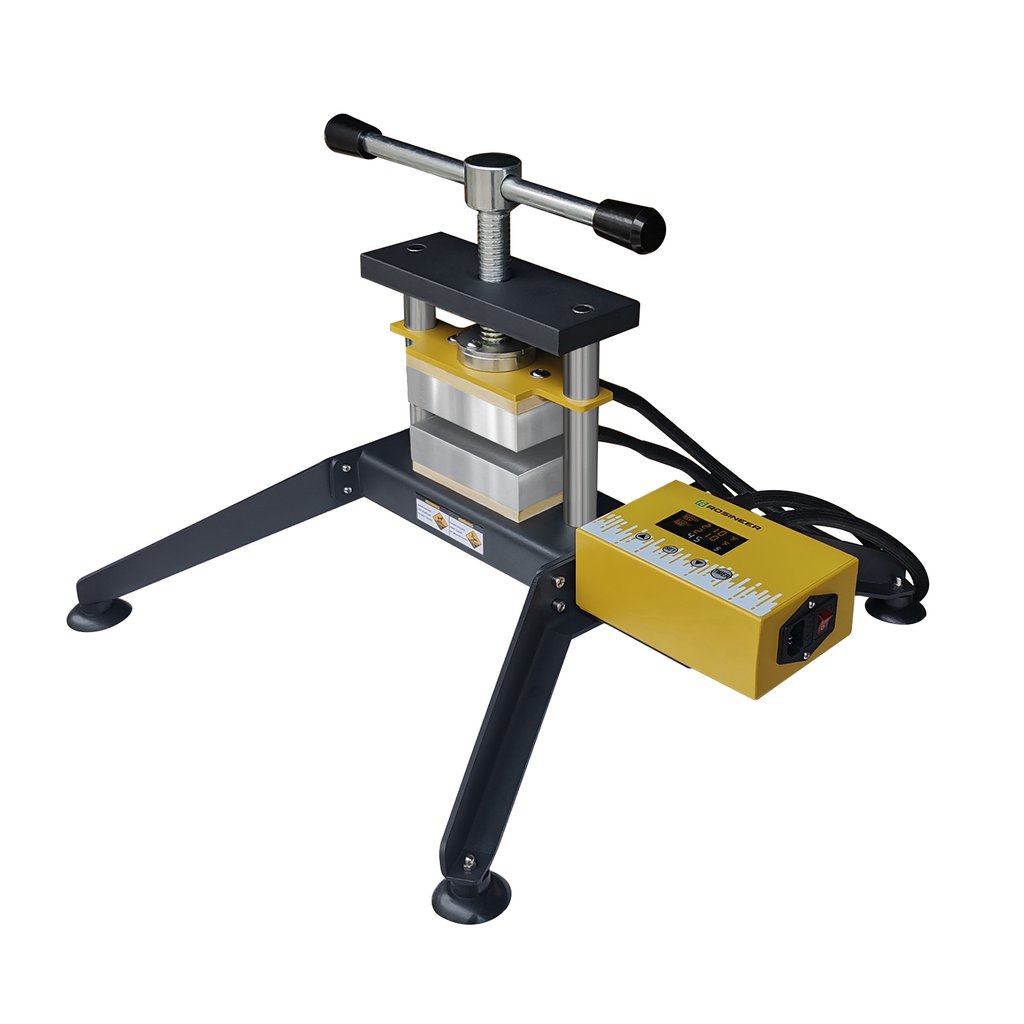

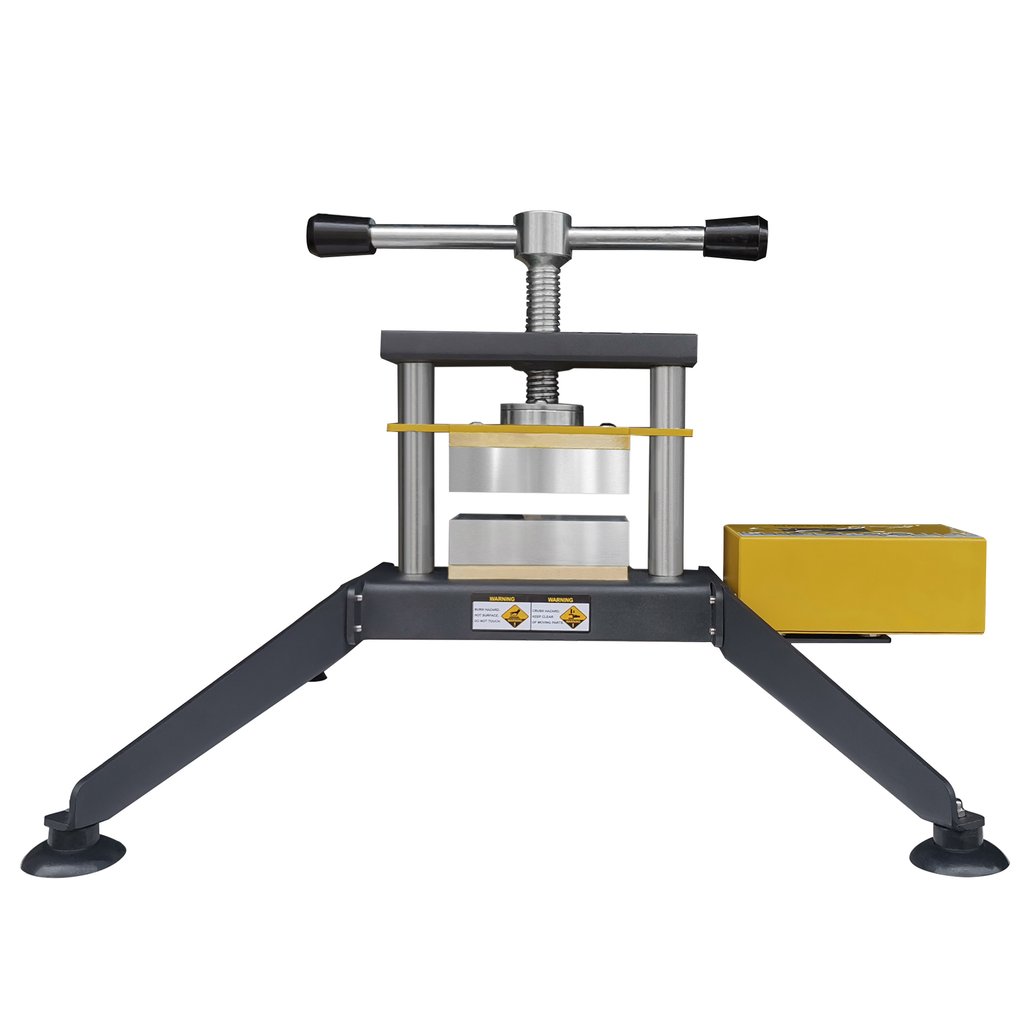

Two assembly options: The machine can be installed with two optional configurations. The option to extend the legs (with suction cup feet) makes the table "grip" pressed. If there is no bracket during assembly, it can be fixed on the work table or bench with screws to increase stability.


  • Maximum pressure: 5500 lbs / 2.5 Ton
  • Heating plate size: 3" x 5" / 7.6 x 12.7 cm
  • Temperature range: up to 356 °F / 180 °C
  • Temperature scale: Fahrenheit / Celsius
  • Timer: up to 999 seconds
  • Max distance of two plates: 1.6" / 4 cm
  • Power: 825 W
  • Current: 7.5 A / 3.75 A
  • Voltage: 110V / 220V
  • Weight: 25 lbs / 10.2 kg
  • Total Weight: 30 lbs / 13.5 kg
  • Packing Size: 14.6 x 13.8 x 8.7 inch / 37 x 35 x 22 cm
  • Discreet packaging
  • Limited Warranty: 2-Year
