The Infinity Linear LED is IP66 waterproof with simple daisy-chaining, amazing efficiency and easy installation. Using patent-pending phosphor technology the Infinity Linear emits over 156 umols of photons per second at 65 watts.
APPLICATIONS & FEATURES
- Multi-tier medicinal plants veg up to 500 umols/m2/sec
- Multi-tier leafy greens 200-300 umols/m2/sec
- Propagation 50-150 umols/m2/sec
- 0-10V dimming (optional)
- Simple wiring and daisy-chaining
- 5-year warranty
The real magic is in the mounting and electrical connections. You will be amazed at how easily the Infinity Linear can be installed in any application.
The heat sink was intelligently designed with mounting in mind:
- The suspension kit simply slides into the mounting channel. No hooks or screws.
- The mounting clips snap into place. In seconds you can mount to any ceiling, wall or shelf.
The electrical design is just as advanced:
- Designed to work from 110 volts up to 277 volts. The driver automatically senses the input voltage and adjusts.

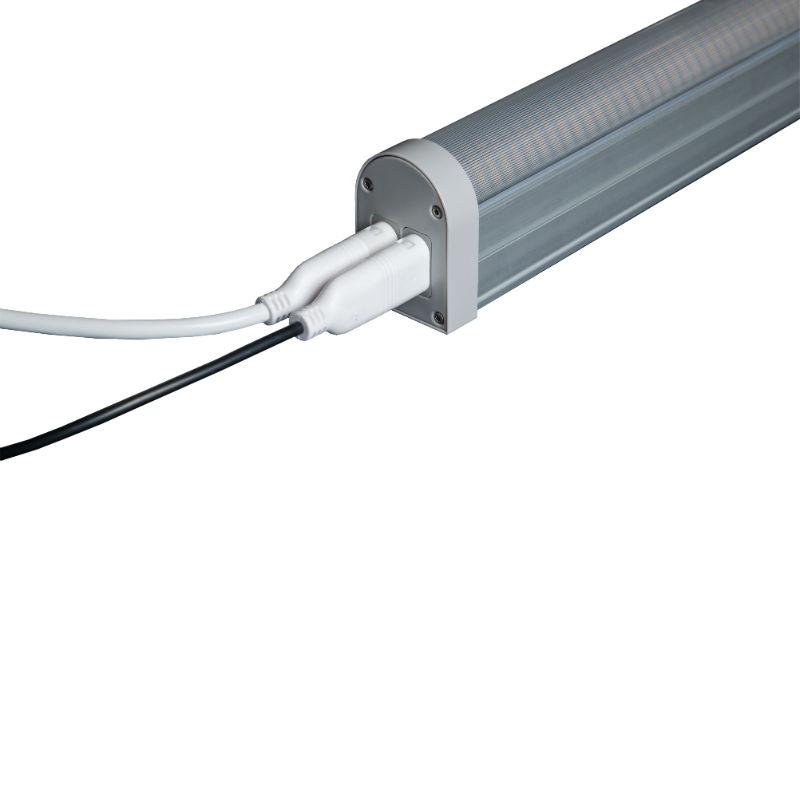

- Multiple bars can be easily connected for gapless light without any wiring.
- Want a space between fixture or mount them next to each other? Use the 2-meter interconnecting cable to daisy-chain.
- 32 fixtures can be operated off a single plug at 277 volts.
The Infinity Linear is IP66 rated and has a 40,000-hour operating lifespan.
Spectrum
Specs
Power output: 65 watts
Spectrum: Full-spectrum white with 660nm red
LEDs: 40,000 hour lifespan until L90
PPF: 156 μmol/s
PAR efficacy: 2.4 μmoles/joule
Voltage: 110-277 VAC
Power factor: > 0.9
Daisy chain:
- 10 lights @ 110V (0.54 A)
- 26 lights @ 240V (0.27 A)
- 32 lights @ 277V (0.23 A)
Thermal management: Passive cooling

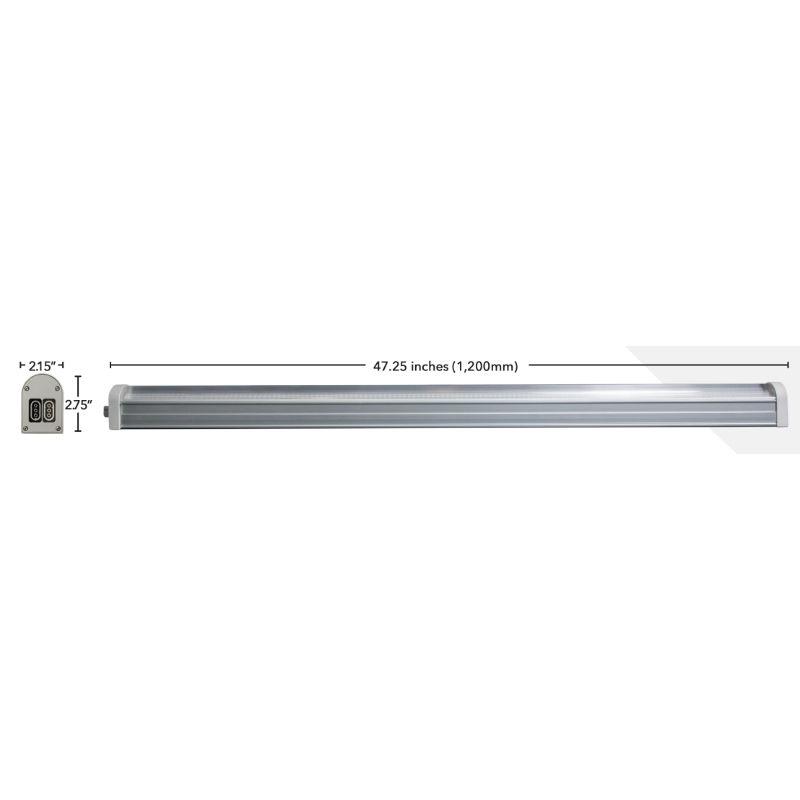

Dimensions: 47.25″ x 2.15″ x 2.75″
Weight: 3.8 lbs
Additional details: UL listed, cUL, CE, IP66, mercury free
Recommended for:
- Multilayer plant production
- Home grow setups
- Greenhouse, commercial, or research operations
- Hydroponic, aeroponic, or aquaponic systems
- Indoor farming or gardens
Manufacturer's Warranty: 5 years
